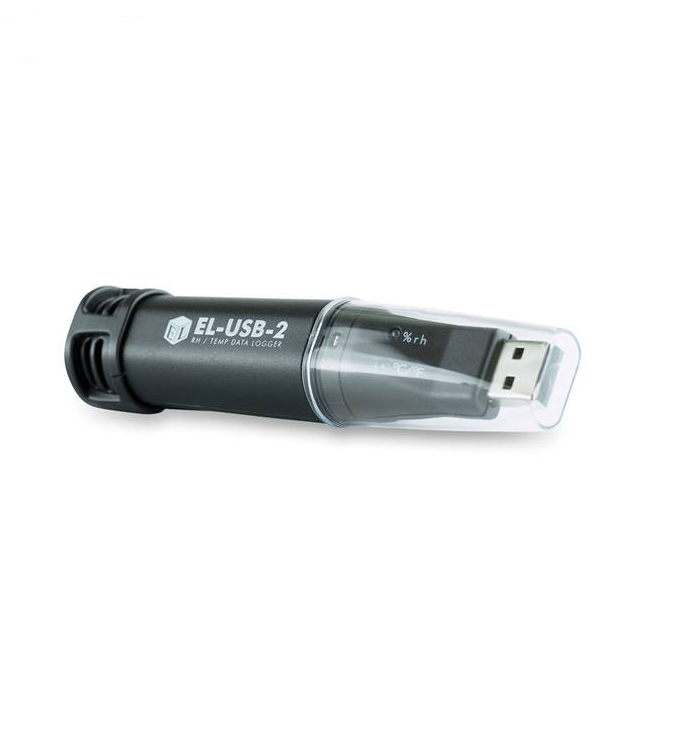

Humidity & Temperature USB data logger with Temperature and Humidity Calibration Certificate - EL-USB-2 CAL-T/H
Out of stock with supplier, this item can't be ordered at this point in time.
This data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000, XP, Vista and 7. Relative humidity, temperature and dew point (the temperature at which water vapor present in the air begins to condense) data can then be graphed, printed and exported to other applications.
The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for a year. Status indication is via flashing red and green LEDs. The logger is protected against ingress from water and dust to IP67 standard when the plastic cap and seal are fitted.
Download the latest version of the configuration and graphing software from the link below.
This is a popular part, normally stocked in high quantity and suitable for new designs.
|Relative Humidity||Measurement range||0||100||%RH|
|Repeatability (short term)||±0.1|
|Accuracy (overall error)||±3**||5|
|Long term stability||0.5|
|Temperature||Measurement range||-35 (-31)||+80 (+176)||°C (°F)|
|Accuracy (overall error)||±0.5 (±1)||±2 (±4)|
|Internal resolution||0.5 (1)|
|Dew Point||Accuracy (overall error) (25°C, 40-100%RH)||±1.1 (±2)***||°C (°F)|
|Logging rate||every 10s||every 12hr||-|
|Operating temperature range||-35 (-31)||+80 (+176)||°C (°F)|
|1/2AA 3.6V Lithium Battery Life||1* year|
* Depending on sample rate, ambient temperatures and use of alarm LEDs
** This specifies the overall error in the logged readings, for relative humidity measurements between 20 and 80%RH
*** This specifies the overall error in the calculated dew point, for realtive humidity measurements between 40 and 100%RH at 25°C
