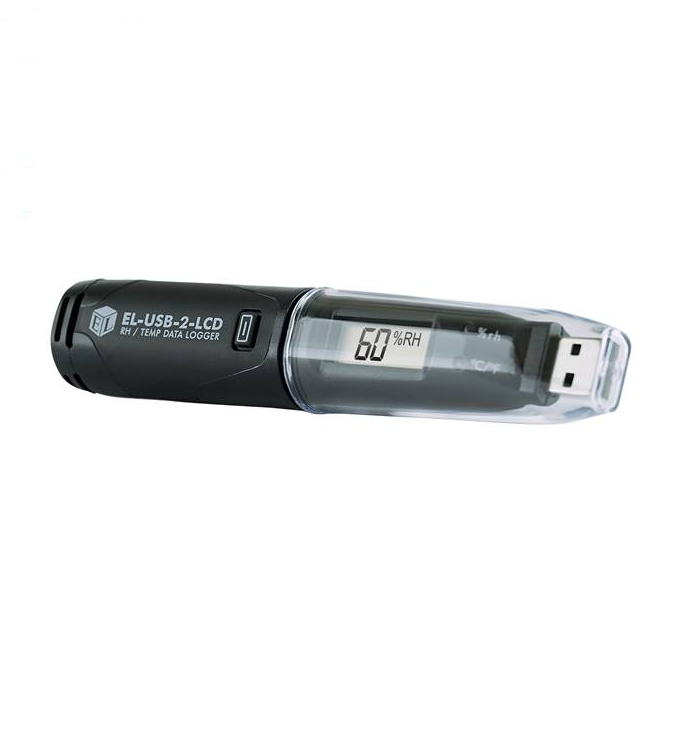

Temperature and humidity USB data logger with LCD display. Includes Calibration Certificate - EL-USB-2-LCD CAL-T/H
Out of stock with supplier, this item can't be ordered at this point in time.
|
This standalone data logger measures and stores up to 16,379 relative humidity and 16,379 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logger and view downloaded data by plugging the module into a PC's USB port and using the supplied software. Relative humidity, temperature and dew point (the temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications.
The high contrast LCD can show a variety of temperature and humidity information. At the touch of a button, the user can cycle between the current temperature and humidity, along with the maximum and minimum stored values for temperature and humidity.
The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year.
The data logger configuration software is compatible with Windows 2000/XP/Vista/7.
Download the latest version of the configuration and graphing software from the link below.
This is a popular part, normally stocked in high quantity and suitable for new designs.
| Specification | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|
| Relative Humidity | Measurement range | 0 | 100 | %RH | |
| Repeatability (short term) | ±0.1 | ||||
| Accuracy (overall error) | ±3* | ±5 | |||
| Internal resolution | 0.5 | ||||
| Long term stability | 0.5 | ||||
| Temperature | Measurement range | -35 (-31) | +80 (+176) | °C (°F) | |
| Repeatability | ±0.1 (±0.2) | ||||
| Accuracy (overall error) | ±0.5 (±1) | ±2 (±4) | |||
| Internal resolution | 0.5 (1) | ||||
| Dew Point | Accuracy (overall error) (25°C, 40-100%RH) | ±1.1 (±2)** | °C (°F) | ||
| Logging rate | every 10s | every 12hr | - | ||
| Operating temperature range † | -35 (-31) | +80 (+176) | °C (°F) | ||
| 1/2AA 3.6V Lithium Battery Life *** | 1 year | ||||
* This specifies the overall error in the logged readings, for relative humidity measurements between 20 and 80%RH
** This specifies the overall error in the calculated dew point, for realtive humidity measurements between 40 and 100%RH at 25°C
*** Depending on sample rate, ambient temperatures and use of alarm LEDs
† At temperatures below -20ºC (-4ºF) the LCD will exhibit slower response times of approximately 10 seconds
