PRTemp1000 Data Logger - PRTEMP1000

Save $178.39
$1,783.87
$1,605.48

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU PRTemp1000-30PSIA

Note: The IFC200 Interface is a required purchase for this device.

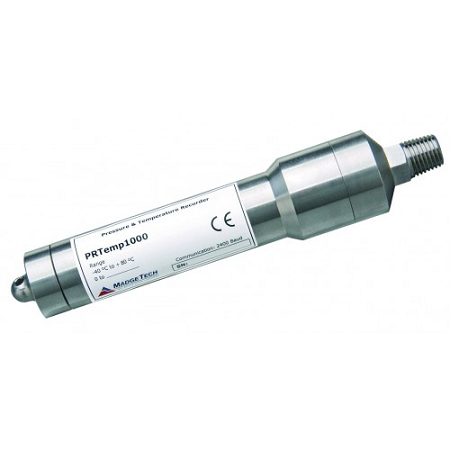

The PRTemp1000 is a rugged pressure data logger designed to accurately monitor and record pressure and temperature parameters at user programmable reading intervals. The rugged stainless steel design allows for the device to be placed in harsh environments, which makes it well suited for use with air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.

The internal temperature sensor provides accurate temperature measurements without the need for a separate temperature recorder. The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours. It will store up to 16,383 readings in its non-volatile memory.

The PRTemp1000 uses a rugged stainless steel pressure strain gauge to accurately measure the pressure. The device comes standard with a ¼” NPT fitting, which allows the logger to be connected to almost any pressure adapter. The PRTemp1000 is also available in a fully submersible version upon request.

There are many different pressure ranges available to fit most any application. The standard pressure ranges are 30 PSIA(G), 100 PSIA(G), 300 PSIA(G), 500 PSIA(G), 1000 PSIA and 5000 PSIA. Other ranges may also be available upon request.
