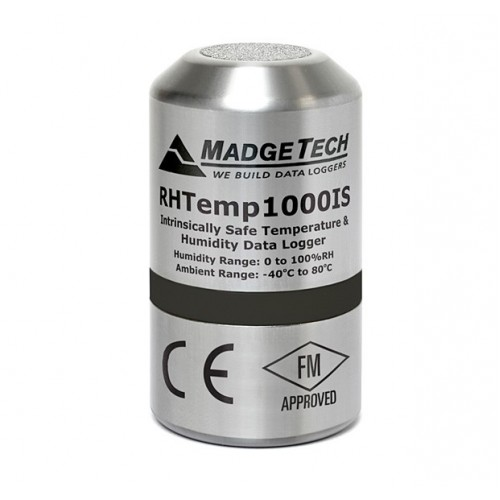

RHTemp1000IS Data Logger

Save $114.59
$1,145.89
$1,031.30

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU RHTemp1000IS

Note: The IFC400 package is a required purchase for this device

The new RHTemp1000IS Intrinsically Safe humidity and temperature logger is a rugged, battery powered, stand alone device which can be used to automatically record humidity and temperature. This compact, portable, easy to use device is able to measure and record up to 16,350 humidity and temperature measurements per channel.

The RHTemp1000IS is FM approved as Intrinsically Safe for hazardous environments. This certification makes the device well suited for EtO Sterilization, environmental studies, and numerous other hostile environment applications. Its real time clock ensures that all the data is time and date stamped. With the added battery life indicator available in the software, users can now easily identify low voltage and change batteries before use.

The device can be started and stopped directly from your computer and its small, sleek size allows it to fit almost anywhere. The RHTemp1000IS makes data retrieval quick and easy. No more removal of end-caps to download your data, simply insert the device into the IFC400 USB docking station (sold separately).

Specifications

Temperature:

- Temperature Sensor: Resistance Temperature Detector (RTD)
- Temperature Range: -40 °C to +80 °C (-40 °F to +176 °F)
- Temperature Resolution: 0.01 °C
- Temperature Response Time in Air: t63 - 8 minutes to 63% of change/t90 - 68 minutes to 90% of change
- Calibrated Accuracy: ±0.5 °C (0 °C to 55 °C)

Humidity:

- Humidity Sensor: Capacitive Polymer
- Humidity Range: 0 %RH to 100 %RH (non-condensing)
- Humidity Resolution: 0.1 %RH
- Humidity Response Time in Air: t63 - 30 seconds to 63% of change/t90 - 2 minutes to 90% of change
- Calibrated Accuracy: ±3.0 %RH maximum

Data Logger:

- Start Modes: Software programmable immediate start or delay start up to 24 months in advance
- Real Time Recording: May be used with PC to monitor and record data in real time
- Memory: 16,350 readings per channel
- Password Protection: Yes
- Reading Rate: 1 reading every second up to 1 reading every 24 hours
- Calibration: Digital calibration through software
- Calibration Date: Automatically recorded within device
- Memory Wrap: Yes
- Data Format: Date and time stamped °C, °F, K, °R ; %RH, mg/mL, Dew Point
- Battery Life: 2 years typical at 25 °C (15 minute reading rate)
- Battery Type: 3.6V lithium battery included, user replaceable
- Time Accuracy: ±1 minute/month at 25 °C
- Required Interface
- Package: IFC400 or IFC406
- Computer Interface: USB (interface cable required); 125,000 baud
- Operating System Compatibility: Windows XP SP3/Vista/Windows 7/Windows 8
- Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH (non-condensing)
- Material: 316 Stainless Steel/PEEK
- Dimensions: 1.7 in x 0.97 in x 0.97 in (42 mm x 24.6 mm x 24.6 mm)
