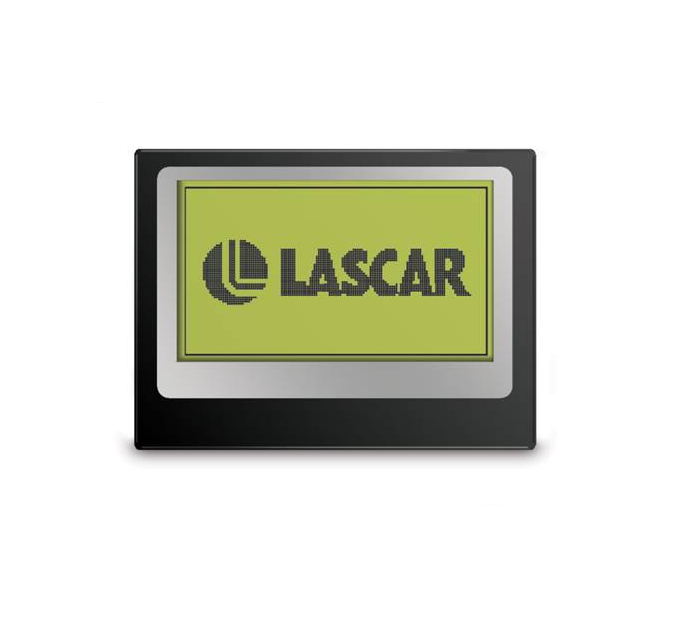

Splash-Proof Ultra Low Profile LCD Graphics Display - SP 5-GFX1
Save $8.80
$88.00
$79.20
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU SP 5-GFX1
This ultra low profile display features a 128 x 64 pixel LCD and LED backlighting. This display plugs directly into a 10-way SIL socket and can be fitted into a panel via the fixing clip. Splash-proof protection is achieved by fitting the seal supplied. The SP 5-GFX-1 is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
Specifications:
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Supply Voltage: 4.5 to 5.5 V d.c.
- Supply Current: 350 uA
Specifications:
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Supply Voltage: 4.5 to 5.5 V d.c.
- Supply Current: 350 uA
