Splash-Proof Ultra Low Profile LCD Voltmeter, 12 Pin Version - SP 200

Save $9.90
$99.00
$89.10

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU SP 200

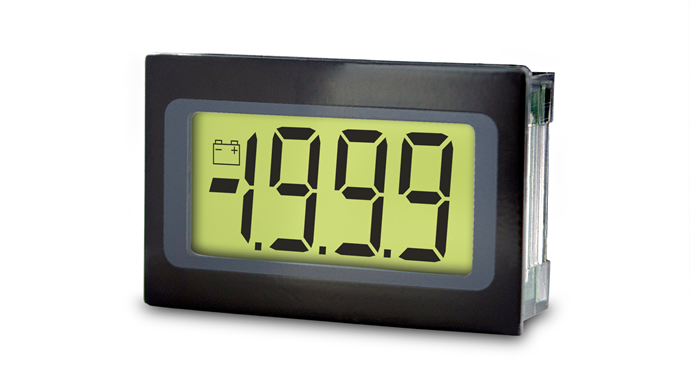

The SP 200 is a 3½ digit LCD voltmeter with 9mm (0.36") digit height and LED backlighting. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into two 6-way SIL sockets and can be fitted into a panel via the fixing clip. Splashproof protection to IP65 is achieved by fitting the seal supplied. This module is directly compatible with competing products.

Features:

• 3½ Digit LCD Voltmeter
• LED Backlighting
• 200mV Full Scale Reading
• 12 Pin DIL Connection
• IP65 Splashproof Protection

Specifications:

• Accuracy (overall error): 0.1 % (±1 count)
• Linearity: ±1count
• Sample rate: 2.5 samples/sec
• Operating temperature range: 0 to 50 °C
• Temperature Stability: 100 ppm/°C
• Supply voltage: 3.4 to 5.25 V d.c.
• Supply current: 350 uA
• Input leakage current (Vin = 0V): 1 to 10 pA
