Wireless Fluid Level Controller (12 vdc, 916-926Mhz) - M107-BT12D
by Aquatel
Save $258.91
$1,149.01
$890.10
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU M107-BT12D
The Aquatel M107-BT12D is a wireless Pump Control system with a remote level monitor that can automatically control fluid levels of tanks/cistern of any shape or size up to 300 meters. Manual control option is available for on-demand fluid level adjustment. Includes LCD console display unit, control unit and tank unit.
Features:
- Auto pump shutdown with loss of radio or no valid level reading.
- Remotely switch a pump or solenoid valve at 300 meters / 1000? standard kit.
- Unit can be setup to a tank (from a bore), or drain a tank (for septic or transfer applications).
- Has low battery warnings, displays temperature of units and even a rapid water loss alarm.
- Long range booster antennas available giving up to 5km / 3 mile range (IC-AQ920-7)
Specifications
Display:
- Transmission range (line of sight): 300 meters.
- Temperature range: -10 to +60 C (14 to 140 F)
- 4 x AA Alkaline batteries (required)
- 1/4 Wave Whip Antenna
- 92W x73D x 50H
- 1 x 6 volt dc switch mode power pack included
- Individually Security coded sets
- Approval :AS/NZS 4268:2003 1:2005
- Housing :ABS Plastic
Control Unit:
- Maximum switchable load 15A
- 90W x 120D x 65H
- 1/4 Wave Whip Antenna

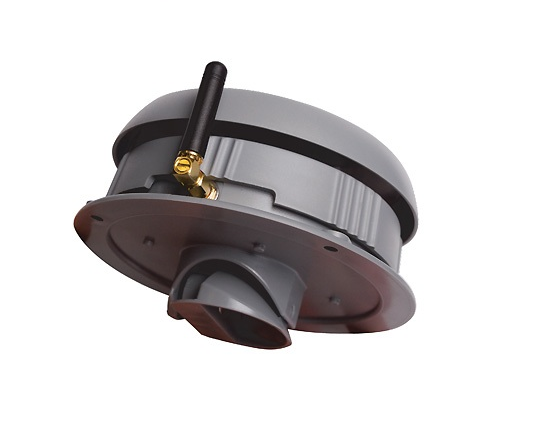

Tank Unit:
- Use only with non-explosive fluids (water,septic,diesel). Do not use with Gasoline
- 4 x AA Alkaline batteries required
- 135 Dia. x 80H
- 1/4 Wave Whip Antenna
