The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices.
The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths down to 50 Hz/60 Hz.
|Display||13mm (0.5") LCD, 3 1/2 digits. Max. indication 199.9.|
|Range/Resolution||20 micro Tesla x 0.01 micro Tesla|
|200 milli Gauss x 0.1 milli Gauss|
|* 1 micro Tesla = 10 milli Gauss|
|Band width||30 Hz to 300 Hz.|
|Number of Axes||Single axis.|
|Accuracy||± (4 % + 3 d) at 50 Hz/60 Hz.|
|Over-input||Display shows '1' .|
|Sampling Time||Approx. 0.4 second.|
|Battery||DC 9 V battery (006P, 6F22).|
|Power Current||Approx. DC 3 mA.|
|Operating Temperature||0 to 50 Celsius (32 to 122 Fahrenheit ).|
|Operating hunidity||Less than 80% RH|
|Dimension||HWD - 131 x 70 x 25 mm (5.2 x 2.8 x 1.0 inch).|
Sold Out $382.75

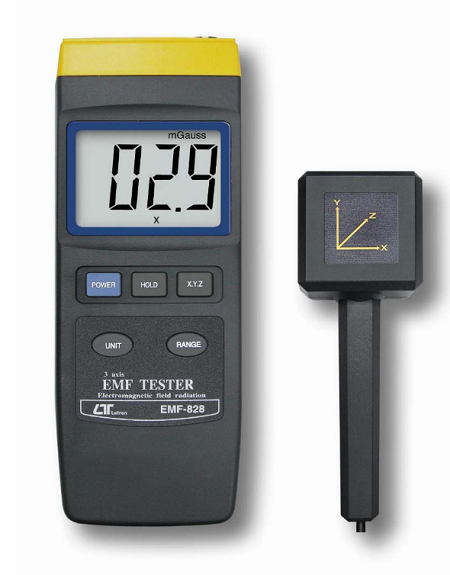

The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at wide bandwidths from 30 Hz to 300 Hz
Three axis (X,Y,Z direction) electromagnetic field measurement
Wide measuring ranges; 3 ranges of 20 micro Tesla, 200 micro Tesla and 2000 micro Tesla
Data Hold function
Separate probe for easy operation and remote measurement
Designed to provide the user a quick, reliable, and easy way to measure electromagnetic field radiation levels around power lines, electrical appliances and industrial devices
Large LCD display (55 mm x 47 mm), max. indication 1999 counts with display units
Hard case included
DC 9V battery power supply
Dimension: 195 x 68 x 30 mm (7.6 x 2.6 x 1.2 inches)
Weight: 460 grams
Sold Out $295.90
High precision magnetometer
DC/AC milligauss Magnetometer
Equipped with high sensitivity sensor for high precision magnetic field measurement
General magnetometer for industrial, mechanical, material, electrical, and laboratory industries
DC and AC magnetic field measurement
Wide measure range: ± 3,000 milligauss
The meter can detect the magnetic fields as small as 0.1 milligauss
Pole indicator for North and South poles
Separate probe for easy operation and remote measurement.
Zero adjustment button for relative measurement.
Microprocessor circuit assures maximum possible accuracy, special functions and features.
Digital reading with large LCD (13 mm).
Separate pin type moisture probe for easy operation adn remote measurement
Data hold function
Auto-shut off function to conserve battery life
RS 232/USB PC serial interface
Heavy duty and compact housing
The EMF-822A is an easy to use and lightweight handheld option for those who wish to measure the electromagnetic field radiation levels of power lines, home appliances, computer monitors and industrial devices. The tester is calibrated to provide accurate results at multiple different bandwidths, down to 50 Hz/60 Hz.
• Handheld EMF tester
• Two settings: Tesla and Gauss
• Calibrated to measure EMF at various bandwidths, down to 50 Hz/60 Hz
• Quickly measures electromagnetic field radiation levels around power lines, home appliances and industrial devices
• Range/Resolution micro Tesla: 20 micro Tesla x 0.01 micro Tesla
• Range/Resolution milli Gauss: 200 milli Gauss x 0.1 milli Gauss
• Accuracy plus or minus 4 percent
• Sampling time 0.4 seconds
• DC 9 V battery
• 131 mm x 70 mm x 25 mm
Sold Out $382.75
