$88.11 $97.90
The EL-USB-1 is a USB temperature data logger with a measurement range of -35 to +80°C (-31 to +176°F). The data logger can store up to 16,382 readings and is supplied with a long-life replaceable lithium battery, allowing the unit to log data continually for at least one year (depending on logging rate and temperature). The status of EL-USB-1 is indicated by flashing red, green and orange LEDs. The data logger is protected against moisture to IP67 standard when the protective cap is fitted.
Data logger configuration software is supplied, allowing the user to easily set-up the data logger. Selectable parameters include logging rate, measurement units, high & low alarms and start-time. The logged data stored in EL-USB-1 is downloaded via the configuration software. Once downloaded data can be graphed, printed or exported to other applications.
The data logger configuration software is compatible with Windows 2000/XP/Vista/7. Download the latest version of the configuration and graphing software from the link below.
This is a popular part, normally stocked in high quantity and suitable for new designs.
| Specification | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| Measurement range | -35 (-31) | +80 (+176) | °C (°F) | |
| Internal resolution | 0.5 (1) | °C (°F) | ||
| Accuracy (overall error) | ±1 (±2) | °C (°F) | ||
| Logging rate | every 10s | every 12hr | - | |
| Operating temperature range | -35 (-31) | +80 (+176) | °C (°F) | |
| 1/2AA 3.6V Lithium Battery Life | 1* year |
$117.81 $130.90
This standalone data logger can record events (detecting an input and storing the time and date of occurrence), record state changes (similar to an ‘event’ but also recording when the input reverts back to normal) and count events (count the number of events that happen in a time period, without any individual event time or date information). Up to 32,510 events or 32,510 state changes can be recorded.
Events and state changes can be triggered by either a rising edge (a voltage going from low to high) or falling edge (a voltage going from high to low). It is also possible to use volt free contacts. Instead of measuring an external voltage, the data logger applies a voltage across the screw terminals and detects when the input closes (i.e. a relay or microswitch).
Fast logging rates allow event capturing at speeds of up to two times per second and state changes at speeds of up to five times per second. Event counting can operate at speeds of up to 100 times per second (when the LEDs are turned off). The user can easily set up the logger, and download the stored data by plugging the data logger into a PC’s USB port and running the purpose designed software under Windows 2000, XP, Vista & 7. Data can then be exported to other applications for evaluation.
The data logger is supplied complete with software, measurement leads terminated with crocodile clips and a long-life lithium battery which allows logging for up to 1 year. Functionality of the unit is indicated by flashing red and green LEDs, with an option to flash the red LED every time an event occurs.
| Specification | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| Time between events | 500 | mS | ||
| Time between state changes | 500 | mS | ||
| Time between event counts | 10 | mS | ||
| Input voltage | 3 | 28 | Vd.c. | |
| 'Volt free contacts' voltage | 2.75 | 3.6 | Vd.c. | |
| 'Volt free contacts' current | 35 | uA | ||
| Timing accuracy | ±3 | secs/24hr | ||
| Operating temperature range | -35 (-31) | +80 (176) | ºC (ºF) | |
| ½AA 3.6V battery life | 1* | year |
* depending on logging rate, ambient temperatur and use of alarm LED
$167.31 $185.90
This standalone data logger measures and stores up to 16,379 relative humidity and 16,379 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logger and view downloaded data by plugging the data logger into a PC’s USB port and using the supplied software. Relative humidity, temperature and dew point (the temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications.
The high contrast LCD can show a variety of temperature and humidity information. At the touch of a button, the user can cycle between the current temperature and humidity, along with the maximum and minimum stored values for temperature and humidity. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year. The data logger is protected against moisture to IP67 when the protective cap is correctly fitted.
The data logger configuration software is compatible with Windows 2000/XP/Vista/7.
Download the latest version of the configuration and graphing software from the link below.
Due to high demand for this product at present we suggest that you contact Lascar directly for up to date lead-time information before ordering online.
| Specification | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|
| Relative Humidity | Measurement range | 0 | 100 | %RH | |
| Repeatability (short term) | ±0.1 | ||||
| Accuracy (overall error) | ±2* | ±4 | |||
| Internal resolution | 0.5 | ||||
| Long term stability | 0.5 | ||||
| Temperature | Measurement range | -35 (-31) | +80 (+176) | °C (°F) | |
| Repeatability | ±0.1 (±0.2) | ||||
| Accuracy (overall error) (20-80%RH) | ±0.3 (±0.6) | ±1.5 (±3) | |||
| Internal resolution | 0.5 (1) | ||||
| Dew Point | Accuracy (overall error) (25°C, 40-100%RH) | ±1.1 (±2)** | °C (°F) | ||
| Logging rate | every 10s | every 12hr | - | ||
| Operating temperature range *** | -35 (-31) | +80 (+176) | °C (°F) | ||
| 1/2AA 3.6V Lithium Battery Life | 1 † | year | |||
* This specifies the overall error in the logged readings for relative humidity measurements between 20 and 80%RH
** This specifies the overall error in the calculated dew point, for realtive humidity measurements between 40 and 100%RH at 25°C
*** At temperatures below -20ºC (-4ºF) the LCD will exhibit slower response times of approximately 10 seconds
† Depending on sample rate, ambient temperature and use of LCD
$117.81 $130.90
This data logger measures and stores up to 32,000 current loop readings over a 4-20mA d.c. measurement range. The data logger features a pair of screw terminals and is supplied complete with flashing red and green LEDs. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000, XP, Vista & 7. The data can then be graphed, printed and exported to other applications.
The data logger is supplied complete with a long-life lithium battery. Correct functioning of the unit is indicated by a flashing red and green LED. The data logger features a pair of screw terminals and is supplied complete with a set of measurement leads terminating in crocodile clips.
Download the latest version of the configuration and graphing software from the link below.
This is a popular part, normally stocked in high quantity and suitable for new designs.
| Specification | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| Measurement range | 4 | 20 | mA | |
| Internal resolution | 0.05 | mA | ||
| Accuracy (overall error) | ±1 | % | ||
| Logging rate | every 1s | every 12hr | - | |
| Operating temperature range | -25 (-13) | +80 (+176) | °C (°F) | |
| 1/2AA 3.6V Lithium Battery Life | 1* year |
* depending on logging rate, ambient temperature and use of alarm LED
$117.81 $130.90
|

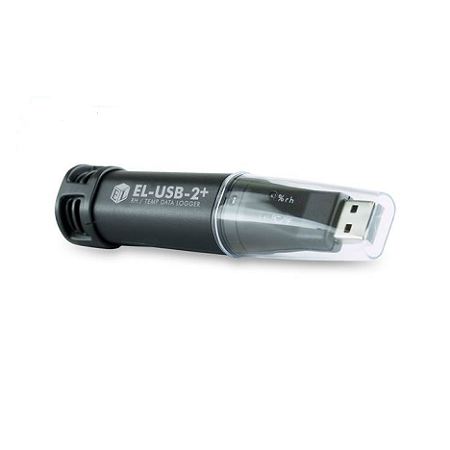

This data logger measures and stores up to 16,382 relative humidity and 16,382 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000, XP, Vista and 7. Relative humidity, temperature and dew point (the temperature at which water vapor present in the air begins to condense) data can then be graphed, printed and exported to other applications.
The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for a year. Status indication is via flashing red and green LEDs. The logger is protected against ingress from water and dust to IP67 standard when the plastic cap and seal are fitted.
Download the latest version of the configuration and graphing software from the link below.
This is a popular part, normally stocked in high quantity and suitable for new designs.
| Specification | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|
| Relative Humidity | Measurement range | 0 | 100 | %RH | |
| Repeatability (short term) | ±0.1 | ||||
| Accuracy (overall error) | ±3** | 5 | |||
| Internal resolution | 0.5 | ||||
| Long term stability | 0.5 | ||||
| Temperature | Measurement range | -35 (-31) | +80 (+176) | °C (°F) | |
| Repeatability | ±0.1 (±0.2) | ||||
| Accuracy (overall error) | ±0.5 (±1) | ±2 (±4) | |||
| Internal resolution | 0.5 (1) | ||||
| Dew Point | Accuracy (overall error) (25°C, 40-100%RH) | ±1.1 (±2)*** | °C (°F) | ||
| Logging rate | every 10s | every 12hr | - | ||
| Operating temperature range | -35 (-31) | +80 (+176) | °C (°F) | ||
| 1/2AA 3.6V Lithium Battery Life | 1* year | ||||
* Depending on sample rate, ambient temperatures and use of alarm LEDs
** This specifies the overall error in the logged readings, for relative humidity measurements between 20 and 80%RH
*** This specifies the overall error in the calculated dew point, for realtive humidity measurements between 40 and 100%RH at 25°C
$137.61 $152.90

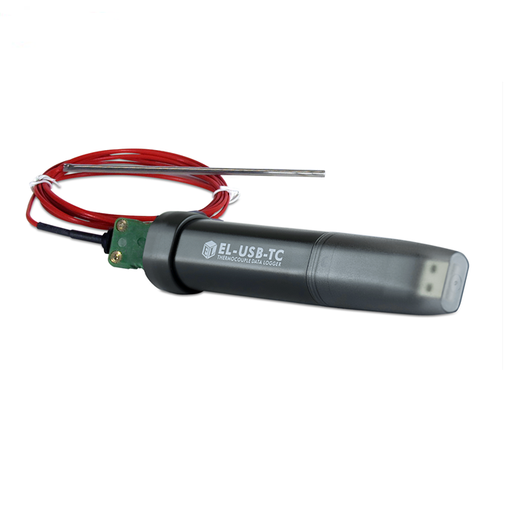

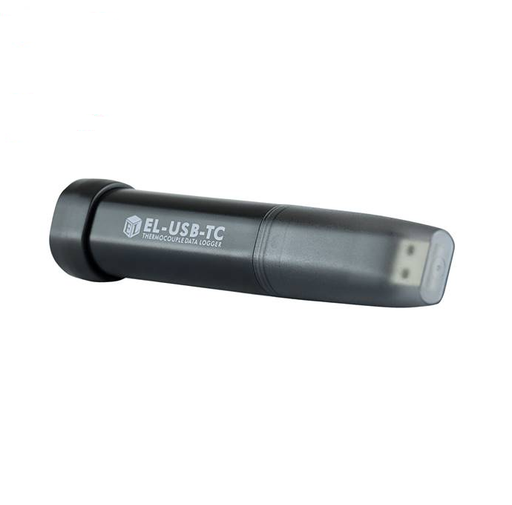

This data logger measures and stores over 32,000 temperature readings from either a K, J or T type thermocouple . A thermocouple is attached via the thermocouple socket at the base of the unit. The user can easily set up the thermocouple type, logging rate, start-time, logging mode, and download the stored data by plugging the module straight into a PC's USB port and running the purpose designed software under Windows 2000, XP, Vista & 7. Data can then be graphed, printed and exported to other applications.
Each EL-USB-TC data logger is supplied complete with a basic K-type thermocouple (for 0 to 400ºC measurement), long-life lithium battery, which will last for approximately 6 months.
Download the latest version of the configuration and graphing software from the link below.
This is a popular part, normally stocked in high quantity and suitable for new designs.
Due to high demand for this product at present we suggest that you contact Lascar directly for up to date lead-time information before ordering online.
| Specification | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|
| Probe Measurement range | K-type | -200 (-328) | +1350 (+2462) | °C (°F) | |
| J-type | -200 (-328) | +1190 (+2174) | |||
| T-type | -200 (-328) | +390 (+734) | |||
| Operating temperature range | -10 (+14) | +40 (+104) | °C (°F) | ||
| Resolution (internal and displayed) | 0.5 (1) | °C (°F) | |||
| Accuracy (logger error) | ±1 (2)** | °C (°F) | |||
| Logging rate | every 1s | every 12hr | - | ||
| 1/2AA 3.6V Lithium Battery Life *** | 6 | month | |||
* Using thermocouple sensors, the EL-USB-TC can log temperatures as detailed above, but the data logger should not be subjected to temperatures outside the Operating temperature range
** EL-USB-TC is designed to be used whilst disconnected from USB port
*** @ 25°C and 1m logging rate
$117.81 $130.90

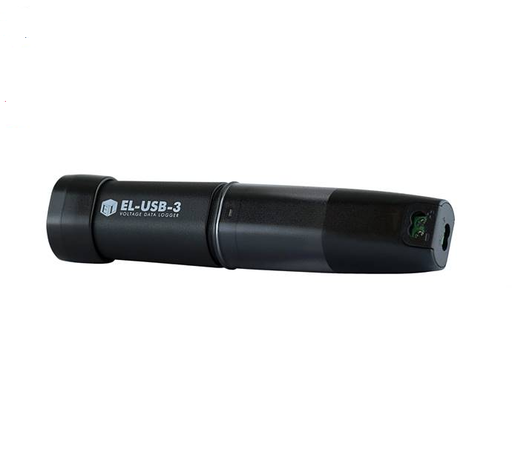

This data logger measures and stores up to 32,510 voltage readings over a 0-30V d.c. measurement range. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PCs USB port and running the purpose designed software under Windows 2000, XP, Vista & 7. The data can then be graphed, printed and exported to other applications.
The data logger is supplied complete with a long-life lithium battery. Correct functioning of the unit is indicated by flashing red and green LEDs. The data logger features a pair of screw terminals and is supplied complete with a set of measurement leads terminating in crocodile clips.
The data logger configuration software is compatible with Windows 2000/XP/Vista/7.
Download the latest version of the configuration and graphing software from the link below.
This is a popular part, normally stocked in high quantity and suitable for new designs.
| Specification | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| Measurement range | 0 | 30 | V d.c. | |
| Internal resolution | 50 | mV | ||
| Accuracy (overall error) | ±1 | % | ||
| Logging rate | every 1s | every 12hr | - | |
| Operating temperature range | -35 (-31) | +80 (+176) | °C (°F) | |
| 1/2AA 3.6V Lithium Battery Life | 1* year |
* depending on logging rate, ambient temperature and use of alarm LED
$147.51 $163.90
|
This standalone data logger measures and stores up to 16,379 relative humidity and 16,379 temperature readings over 0 to 100%RH and -35 to +80°C (-31 to +176°F) measurement ranges. The user can easily set up the logger and view downloaded data by plugging the module into a PC's USB port and using the supplied software. Relative humidity, temperature and dew point (the temperature at which water vapour present in the air begins to condense) data can then be graphed, printed and exported to other applications.
The high contrast LCD can show a variety of temperature and humidity information. At the touch of a button, the user can cycle between the current temperature and humidity, along with the maximum and minimum stored values for temperature and humidity.
The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year.
The data logger configuration software is compatible with Windows 2000/XP/Vista/7.
Download the latest version of the configuration and graphing software from the link below.
This is a popular part, normally stocked in high quantity and suitable for new designs.
| Specification | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|
| Relative Humidity | Measurement range | 0 | 100 | %RH | |
| Repeatability (short term) | ±0.1 | ||||
| Accuracy (overall error) | ±3* | ±5 | |||
| Internal resolution | 0.5 | ||||
| Long term stability | 0.5 | ||||
| Temperature | Measurement range | -35 (-31) | +80 (+176) | °C (°F) | |
| Repeatability | ±0.1 (±0.2) | ||||
| Accuracy (overall error) | ±0.5 (±1) | ±2 (±4) | |||
| Internal resolution | 0.5 (1) | ||||
| Dew Point | Accuracy (overall error) (25°C, 40-100%RH) | ±1.1 (±2)** | °C (°F) | ||
| Logging rate | every 10s | every 12hr | - | ||
| Operating temperature range † | -35 (-31) | +80 (+176) | °C (°F) | ||
| 1/2AA 3.6V Lithium Battery Life *** | 1 year | ||||
* This specifies the overall error in the logged readings, for relative humidity measurements between 20 and 80%RH
** This specifies the overall error in the calculated dew point, for realtive humidity measurements between 40 and 100%RH at 25°C
*** Depending on sample rate, ambient temperatures and use of alarm LEDs
† At temperatures below -20ºC (-4ºF) the LCD will exhibit slower response times of approximately 10 seconds
$226.71 $251.90

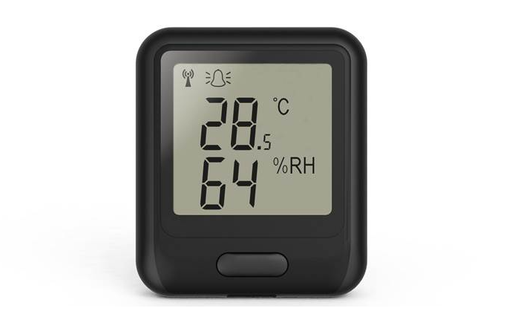

The EL-WiFi-TH sensor measures the temperature and humidity of the environment in which it is situated. Data is transmitted wirelessly via a WiFi network to a PC and viewed using a free software package. During configuration the sensor will search for an existing wireless network whilst physically connected to the PC. It can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application (max 60 days at 10 second sample interval). The range of the sensor can be increased by using WiFi extenders.
Compatible with Enterprise Networks from September 2013
| Specification | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| Battery life | >1* | Year | ||
| USB supply voltage | 4.5V | 5.5V | Vd.c. | |
| Temperature measurement range | -20 (-4) | +60 (+140) | °C (°F) | |
| Humidity measurement range | 0 | 100 | %RH | |
| Temperature Internal resolution | 0.1 (0.18) | °C (°F) | ||
| Humidity Internal resolution | 1.0 | %RH | ||
| Temperature accuracy (overall error between -20°C and +60°C) | ±0.4 (0.7) | ±1.2(2.1) | °C (°F) | |
| Temperature accuracy (overall error between +5°C and +60°C) | ±0.3 (0.5) | ±0.4 (0.7) | °C (°F) | |
| Humidity accuracy (overall error between 20%RH and 80%RH) | ±2.0 | ±3.0 | %RH | |
| Logging rate (user configuable) | Every 10s | Every 30s | Every 12hrs | Transmission rate |
| Operating temperature range | -20 (-4) | +60 (+140) | °C (°F) |
*Typical, but will be less if frequent transmissions
$144.00 $160.60
The EL-USB-CO is a USB data logger that measures and stores up to 32,510 Carbon Monoxide (CO) readings over a 0 to 1000 ppm measurement range. The user can easily set up the logging rate and start time, and download the stored data by plugging the module straight into a PC's USB port and running the purpose designed software under Windows 2000, XP, Vista & 7. The data can then be graphed, printed and exported to other applications.
The data logger is supplied complete with a long-life lithium battery. Data is stored in non-volatile memory and is not lost when the battery is empty. A bright red LED will flash and a buzzer can sound when a preset warning level has been exceeded.
IMPORTANT SAFETY WARNING EL-USB-CO is a professional instrument that is designed to measure and record levels of Carbon Monoxide (CO) in air over a period of time. It takes a sample reading at set intervals for recording / monitoring / analysis purposes. It is not a suitable substitute for a domestic or industrial Carbon Monoxide detector/alarm.
Due to high demand for this product at present we suggest that you contact Lascar directly for up to date lead-time information before ordering online.
| Specification | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| Measurement range | 0 | 1000 | ppm CO | |
| Internal resolution | 0.5 | ppm CO | ||
| Accuracy (overall error) | ±6 | % of reading | ||
| Repeatability | ±3 | % of reading | ||
| Decay of reading over time | 5 | % of reading / year | ||
| Response time (to reach 90%) | 1 | minute | ||
| Logging rate | every 10s | every 5minr | - | |
| Operating temperature range | -10 (14) | +40 (104) | °C (°F) | |
| Operating pressure range | 900 | 1100 | mbar | |
| 1/2AA 3.6V Lithium Battery Life | 3* month |
* with battery supplied, 10 minute logging rate, 25°C ambient temperature, audible warning disabled, reading <10ppm CO
$15.95
3.6V Battery to fit Lascar USB Data Loggers
1200mAh Capacity
$131.00
$216.81 $240.90
The EL-GFX-2 standalone USB data logger measures and stores over 250,000 temperature and humidity readings over a -30 to +80ºC (-22 to 176°F) and 0 to 100%RH range at a resolution of 0.1ºC and 0.1%RH.
The data logger features a high-contrast graphic LCD and three-input buttons which allows users to start, stop and restart the data logger using on-screen menus. This menu also provides real-time analysis of data either as a data summary (showing highest & lowest readings and alarm conditions) or as a graph that updates as new data is added.
Multiple data logging sessions can be stored on the device ready for upload to a PC at a later date.
Features
• -30 to +80°C and 0 to 100% RH measurement ranges
• Logging rates between 10 seconds and 1 hour
• Immediate, delayed, push-button or temperature/RH triggered start mode
• Graphic LCD shows real-time readings, graph and current status
• Stores over 250,000 readings
• Calibration certificate available
$147.51 $163.90
Sold Out $149.00
A must for anyone involved with food preparation, archiving or storage or applications where storage of environment information is important. This USB datalogger logs temperature and humidity readings and store them in internal memory for later download to a PC.
The measurement interval is adjustable - you simply set up the recording parameters then download the data when you need it. The data is recorded at the prescribed intervals and will alert you if preset min/max levels are exceeded.
Countless applications including greenhouses, museums, warehouses, container storage, photography, archives, food preparation etc. Mounting bracket and software included:
Features:
• 32,700 sample memory
• Adjustable measurement cycle
• Analysis software included
• Software compatible with Windows 2000, XP, Vista
Specifications:
• Resolution: Humidity 0.1%, temperature 0.1°C
• Range: -40 - 70°C (-40 - 158°F), 0 - 100% relative humidity
• Accuracy: Humidity ±3%, temperature ±1%
• Memory: 32,700 samples
• Measurement cycle: 1s - 24h
• Dimensions: 95(H) x 50(W) x 32(D)mm
$117.81 $130.90
This standalone data logger measures and stores up to 16,378 temperature readings over a -35 to +80°C (-31 to +176°F) range. The user can easily set up the logging rate and start-time, and download the stored data by plugging the data logger into a PC’s USB port and running the purpose designed software under Windows 2000, XP, Vista, and 7. Data can then be graphed, printed and exported to other applications. The high contrast LCD can show a variety of temperature information. At the touch of a button, the user can cycle between the current, maximum and minimum stored temperatures.
The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year. The data logger is protected against moisture to IP67 standard when the protective cap is fitted.
| Specification | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| Measurement range | -35 (-31) | +80 (+176) | °C (°F) | |
| Internal resolution | 0.5 (1) | °C (°F) | ||
| Accuracy (overall error) | ±0.5 (±1) | ±1.5 (±3) | °C (°F) | |
| Logging rate | every 10s | every 12hr | - | |
| Operating temperature range | -35 (-31) | +80 (+176) | °C (°F) | |
| 1/2AA 3.6V Lithium Battery Life | 1 | Year |
Sold Out $247.50
|

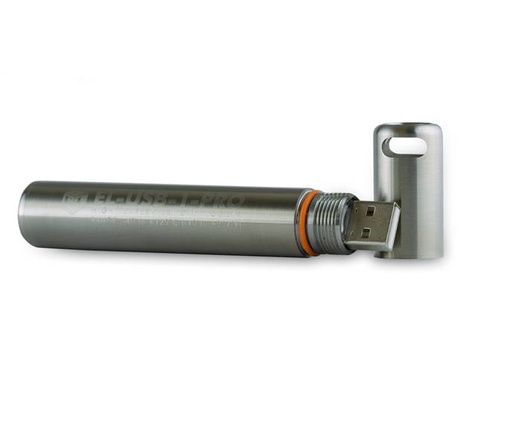

The EL-USB-1-PRO data logger measures and stores up to 32,510 temperature readings over the -40 to +125ºC (-40 to +257ºF) measurement ranges. The logger is housed in a stainless steel case to protect the logger from corrosion, impact and moisture (to IP-67). A long life lithium battery is included which allows logging for up to 3 years.
The user can easily set up the logger and view downloaded data by plugging the device into a PC's USB port and using the supplied software. Data can then be graphed, printed and exported to other applications. The data logger configuration software is compatible with Windows 2000/XP/Vista/7.
Download the latest version of the configuration and graphing software from the link below.
| Specification | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| Measurement range | -40 (-40) | +125 (+257) | °C (°F) | |
| Internal resolution | 0.1 | °C (°F) | ||
| Accuracy (overall error) | ±0.2 (±0.4) * | ±1.6 (±2.9) | °C (°F) | |
| Logging rate | every 1s | every 12hr | - | |
| Operating temperature range | -40 (-40) | +125 (+257) | °C (°F) | |
| 2/3AA 3.6V Lithium Battery Life | 1** | 2*** | 3 | Year |
* Between 0º and 40ºC
** 10 second logging rate @ -20ºC
*** 10 second logging rate @ +80ºC
Sold Out $163.90
This standalone data logger measures and stores over 32,000 temperature readings from either a K, J or T type thermocouple.
The thermocouple is attached via the thermocouple socket at the base of the unit. The user can easily set up the logger and view downloaded data by plugging the module into a PC's USB port and using the supplied software. Data can then be graphed, printed and exported to other applications.
The high contrast LCD can show several different temperature variables. The user can cycle between these using the push button. The data logger is supplied complete with a long-life lithium battery, which can typically allow logging for up to 1 year.
Download the latest version of the configuration and graphing software from the link below.
| Specification | Min. | Typ. | Max. | Unit | |
|---|---|---|---|---|---|
| Probe Measurement range | K-type | -200 (-328) | +1350 (+2462) | °C (°F) | |
| J-type | -200 (-328) | +1190 (+2174) | |||
| T-type | -200 (-328) | +390 (+734) | |||
| Operating temperature range | -10 (+14) | +40 (+104) | °C (°F) | ||
| Resolution (internal and displayed) | 0.5 (1) | °C (°F) | |||
| Accuracy (logger error) | ±1 (2)** | °C (°F) | |||
| Logging rate | every 1s | every 12hr | - | ||
| 1/2AA 3.6V Lithium Battery Life *** | 6 | month | |||
* Using thermocouple sensors, the EL-USB_TC can log temperatures as detailed above, but the data logger should not be subjected to temperatures outside the Operating temperature range
** EL-USB-TC is designed to be used whilst disconnected from USB port
*** @ 25°C and 1m logging rate
$399.00 $438.90
The EL-DataPad allows users of Lascar’s EL-USB data loggers to configure their units and download data and view logging results on-the spot rather than removing the logger from the environment being measured and taking it to their PC. This allows continual logging with shorter breaks in data collection, less travel for the user, on-site data collection in graph, legend and summary format and the ability for users to reconfigure loggers in ‘the field’.
The logger is connected to the EL-DataPad via a standard USB port at the top of the viewer. Once connected, the user is guided through a simple touchscreen menu with options to Set-Up Logger, Stop Logger & Download and View Data. On-screen instructions follow the same structure as Lascar’s EL-USB-WIN software for PC currently provided with each data logger.
Data from up to 100 loggers can be viewed on the EL-DataPad, with data from a further 400 units stored on the unit at any one time. Data can be transferred to a PC or Mac using a micro USB cable supplied with the unit. Once uploaded, data is saved in comma separated variable (csv) format, making it suitable for import into spreadsheet packages such as Microsoft Excel or graphed on a PC using Lascar’s EL-WIN-USB software.
The EL-DataPad is compatible with the following EL-USB data loggers: EL-USB-1, EL-USB-1-LCD, EL-USB-1-PRO, EL-USB-2, EL-USB-2+, EL-USB-2-LCD, EL-USB-2-LCD+, EL-USB-TC, EL-USB-TC-LCD, EL-USB-LITE.
Sold Out
Features
Monitor with real time data logger and saves measurement data in the included SD card
Data stored in the SD card can easily be downloaded and saved as spreadsheet without the need for additional software.
Shows 3 channels ( CH 1, CH 2, CH 3) pressure value in the same LCD.
Comes with two additional pressure wire transmitters
SD card capacity: 1GB to 16 GB
Sampling adjustment: 5/10/30/60/120/300/600 seconds auto function
Large LCD display
Equipped with microcomputer processor for accuracy and quality performance
RS232/USB computer interface
Sold Out $405.90
Features:
Humidity + Temperature + Dew point are combined in one meter, intelligent and professional.
0.1 %RH resolution for the humidity reading, 0.1 degree resolution for the temperature reading.
Fast humidity measuring response time
High accuracy and high precisions
Dew point measurement
Manual and automatic data logger
Data logger function with flexible sampling time selection, can save max. 1000 reading data with recall.
Just a few panel buttons for easy operation.
Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
LCD with two display, easy readout
Heavy duty and compact housing case, designed for easy carry out and operation
Records Maximum and Minimum readings with Recall
Auto shutoff saves battery life
Data hold function for freezing the desired value on display
RS 232 PC serial interface
Show the humidity and temperature values on the LCD display at the same time
Built-in low battery indicator
Wide humidity and temperature measuring range
Separate humidity and temperature probe, easy operation and remote measurement.
Sold Out $407.00
$526.90
The HOBO UX120 Thermocouple Logger is a four-channel LCD data logger for measuring and recording temperature in a broad range of monitoring applications. The logger makes it easy and convenient to record temperatures over a broad range (-260 to 1820⁰ C) and can accept up to four J, K, T, E, R, S, B, or N type probes.
In addition to accepting four thermocouple probes, the logger features an internal temperature sensor for logging ambient temperatures, further extending the range of application possibilities
Environment:
The UX120-014M Data Logger is for use in Indoor environments
Measurements:
The UX120-014M Data Logger supports the following measurements (sensors sold separately): Temperature
Sold Out
The HOBO® MX2001 is the industry’s first water level data logger designed for convenient wireless setup and download from mobile devices via Bluetooth Low Energy. The logger dramatically simplifies and lowers the cost of field data collection by providing wireless access to high-accuracy water level and temperature measurements right from a mobile phone or tablet. The MX2001 logger consists of a top-end unit and a water level sensor connected by a direct read cable. Cables can be ordered in lengths from 0.2 to 500m for deployment in a wide range of wells.
• Wireless data offload to mobile devices using Bluetooth Low Energy
• Direct read cable connects sensor to top-end logger/transmitter: The cable includes Kevlar strength member and twist-on connectors make it easy to change cables
• Integrated barometric pressure sensor enables direct water level readout
• Reference water level can be entered at the start of the deployment
• Use HOBOmobile on iOS devices for setup, data viewing and data sharing
• Powered by two user-replaceable AA batteries in the top-end unit
• Several logging modes: normal, multi-rate logging and burst-logging
• Durable ceramic sensor
$258.50
Sold Out
Sold Out
Sold Out
$361.90
$239.80
$170.50
The HOBO UX100-003 Temp/RH data logger records temperature and relative humidity (within 3.5% accuracy) in indoor environments with its integrated sensors. The logger is ideal for monitoring occupant comfort in office buildings, tracking food storage conditions in warehouses, logging temperature trends in server rooms, and measuring humidity levels in museums.
Features:
• Easy-to view LCD display
• Large memory capacity
• Visual high & low alarm thresholds
• New Burst and Statistics logging modes
• User-replaceable RH sensor
Environment: The UX100-003 Data Logger is for use in Indoor environments
Measurements:he UX100-003 Data Logger measures temperature and relative humidity
Requires HOBOware software and a communications device
Sold Out
Sold Out
$161.00
The HOBO Motor On/Off data logger records motor on and off conditions within an AC magnetic field with its internal sensor, or mechanical contact closures from external sensing devices. This logger is ideal for tracking the usage & runtimes of motors, pumps, compressors, and other equipment. The HOBO UX90-004 Motor On/Off Logger is available in a standard 128 KB memory model (UX90-004) capable of 84,650 measurements and an expanded 512KB memory version (UX90-004M) capable of over 346,795 measurements.
Features:
• Dual internal motor sensors gives better sensitivity for well shielded motors
• External input for measuring mechanical contact closures when signal strength is low
• Auto-calibration of ON and OFF thresholds ensures reliable readings
Environment: The UX90-004 Data Logger is for use in Indoor environments
Measurements:he UX90-004 Data Logger measures Motor On/Off, Runtime, State Open/Closed
Requires HOBOware software and a communications device
Sold Out
$422.00
Sold Out
$190.30
Sold Out $295.90
$197.01 $218.90
$256.41 $284.90
The EL-GFX-DTC standalone USB data logger measures and stores over 250,000 temperature readings from two J, K, or T-type thermocouple inputs at a resolution of 0.1ºC
The data logger features a high-contrast graphic LCD and three-input buttons which allows users to start, stop and restart the data logger using on-screen menus. This menu also provides real-time analysis of data either as a data summary (showing highest & lowest readings and alarm conditions) or as a graph that updates as new data is added.
Multiple data logging sessions can be stored on the device ready for upload to a PC at a later date.
Features
• Dual channel, compatible with K, J and T type Thermocouples
• Logging rates between 2 seconds and 1 hour
• Immediate, delayed, push-button or temperature triggered start mode
• Graphic LCD shows real-time readings, graph and current status
• Stores over 250,000 readings
• Calibration certificate available
Sold Out $284.90

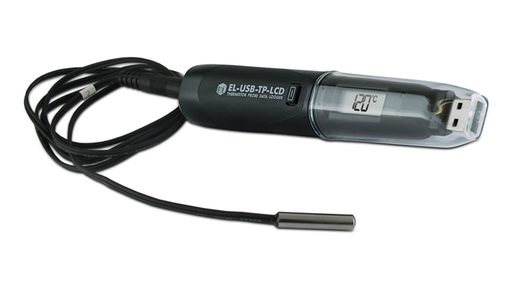

This standalone USB data logger measures and stores over 250,000 temperature readings from two thermistor probes over a -40 to +125°C (-40 to +257°F) range at a resolution of 0.1ºC.
The data logger features a dot-matrix LCD and three face-buttons to navigate through an on-screen menu. This menu provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host-PC.
Users can reset the maximum/minimum reading using the on-screen menu; this introduces an ‘event marker’ into the data which can later be viewed in the graphing software (‘Mark Events’ option) and the data file after download.
Features
• Dual channel, compatible with K, J and T type Thermocouples
• Logging rates between 2 seconds and 1 hour
• Immediate, delayed, push-button or temperature triggered start mode
• Graphic LCD shows real-time readings, graph and current status
• Stores over 250,000 readings
• Calibration certificate available
$216.81 $240.90
This standalone data logger measures and stores more than 250,000 temperature readings from a K, J or T-type thermocouple at a resolution of 0.1°C (0.2°F). It comes supplied with a K-type thermocouple capable of measuring from -80 to +400°C (-112 to +752°F).
TThe data logger features a high contrast dot-matrix LCD and three buttons to navigate through an on-screen menu. This menu provides the user with access to real-time trend analysis, data summaries and the ability to start, stop and restart the data logger without the need to connect the data logger to the host-PC.
Users can reset the maximum / minimum reading using the on-screen menu; this introduces an ‘event marker’ into the data which can later be viewed in the graphing software (‘Mark Events’ option) and the data file after download.
Features
• Compatible with K, J and T type Thermocouples
• Logging rates between 2 seconds and 1 hour
• Immediate, delayed, push-button or temperature triggered start mode
• Graphic LCD shows real-time readings, graph and current status
• Stores over 250,000 readings
• Calibration certificate available
$152.90
Sold Out $114.40
$286.11 $317.90
$167.31 $185.90
Sold Out
Subscribe to our newsletter and always be the first to hear about what is happening.
© 2017 Electric Burst.
