2 in 1 Digital Contact And Non-Contact Tachometer - TAC-02

Save $7.53
$150.70
$143.17

6 in stock! Order now.
SKU DT-2236C
This meter is a contact and non-contact tachometer.It combines the accuracy & quick measurements and high RPM measurement of a modern laser tachometer. It provides measuring range of 2.5~99,999RPM (laser), 0.5~19,999RPM (contact) and surface speed is displayed in both m/min & ft/min. It has Auto Ranging, detecting distance of up to 500mm or 20inch and accuracy of ±(0.05% +1digit).

With this it produce consistent accurate readings in seconds with no guessing or error. Plus, it automatically store Last, Maximum and Minimum values and can be recall anytime. Safe & accurate measuring of RPM & rotational speed without inflicting any damage to the target object.

Features:

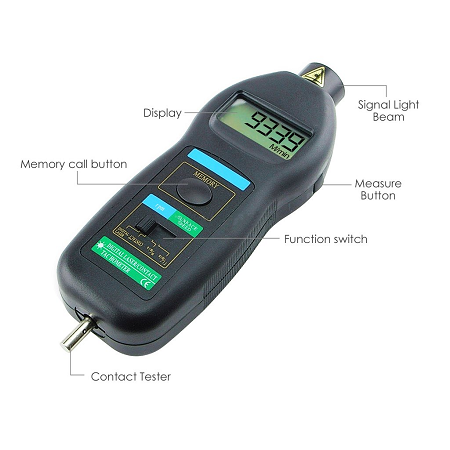

- Laser photo & surface contact measurements
- Reads in RPM (2.5 ~ 99,999), m/min (0.05 ~ 1,999.9) and ft/min (0.2~6,560)
- Wide Measuring Range of 0.5~99,999RPM
- With Auto Ranging and automatic low power indication
- LSI-circuit and crystal time base mechanism for high accuracy & fast measuring time
- Last value, maximum value and minimum value
- Insignificant zero suppression
- Durable & light weight
- Tested according to European international guidelines and standards(CE Marking)

Specifications:

- Units of Measure: ft/min and m/min
- Display : 5 digits, 10mm LCD with function annunciation
- Measurement (Photo Tach): 2.5 ~ 99,999 RPM
- Measurement (Contact Tach): 0.5 ~ 19,999 RPM
- Measurement (Surface Speed): 0.05 ~ 1,999.9m/min; 0.2~ 6,560 ft/min
- Resolution (Photo Tach): 0.1RPM (2.5 ~ 999.9 RPM); 1 RPM(over 1,000 RPM)
- Resolution (Contact Tach): 0.1 RPM (0.5 ~999.9 RPM); 1 RPM(over 1,000 RPM)
- Resolution (Surface Speed): 0.01 m/ min.(0.05~99.99 m/min); 0.1m/ min.(over 100 m/min); 0.1ft/min (0.1 ~ 999.9 ft/min); 1ft/min (over 1000 ft/min)
- Accuracy : ±(0.05% +1 digit)
- Sampling Time : Photo Tach (1 sec,over 60 RPM); ContactTach (1 sec, over 60 RPM)
- Photo Tach. Detecting Distance: 50~500mm/2~20inch
- Memory : Last value, Max. value, Min.value
- Test Range Select : Automation
- Time Base: Quartz crystal
- Circuit : Exclusive one chip of microcomputer LSI circuit
- Battery: 4 x 1.5AA Battery
- Operation Temperature : 0~50°C(32~122°F)

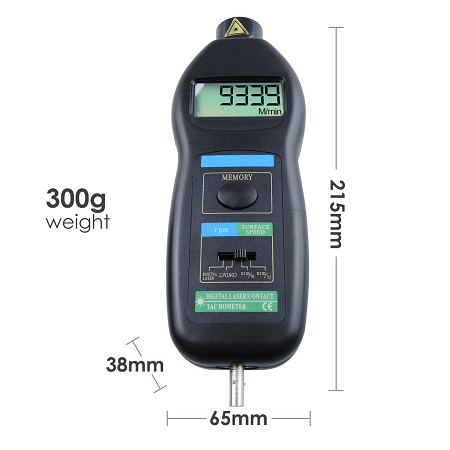

- Size : 215 x 65 x 38mm
- Weight: 300g including battery
