200mV LED Voltmeter - DPM 40
Save $15.84
$158.40
$142.56
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU DPM 40

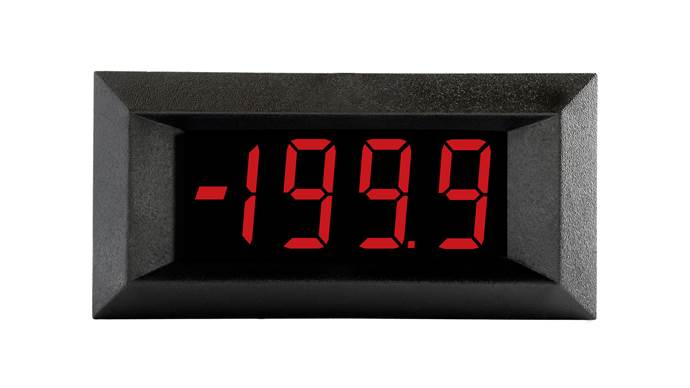

The DPM 40 is a 3½ digit LED voltmeter with 11mm (0.43") digit height. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter can be panel mounted using the bezel and window. Connection to the meter is via two rows of pins. This is a popular part, normally stocked in high quantity and suitable for new designs.
Features:
• 3½ Digit LED Voltmeter
• 200mV Full Scale Reading
• Auto-zero, Auto-polarity
• DIL Pin Connections
• Bezel Mounted Module
Specifications:
• Accuracy (overall error): 0.1 % (±1 count)
• Linearity: ±1count
• Sample rate: 2.5 samples/sec
• Operating temperature range: 0 to 50 °C
• Temperature stability: 150 ppm/°C
• Supply voltage (V+ to V-): 4.5 to 5.5 V d.c.
• Supply current: 50 to 90 uA
• Input leakage current: 1-10 pA
