PanelPilot 2.4” Programmable TFT 4-20mA Meter - SGD 24-M420

Sold out

Out of stock with supplier, this item can't be ordered at this point in time.
SKU SGD 24-M420

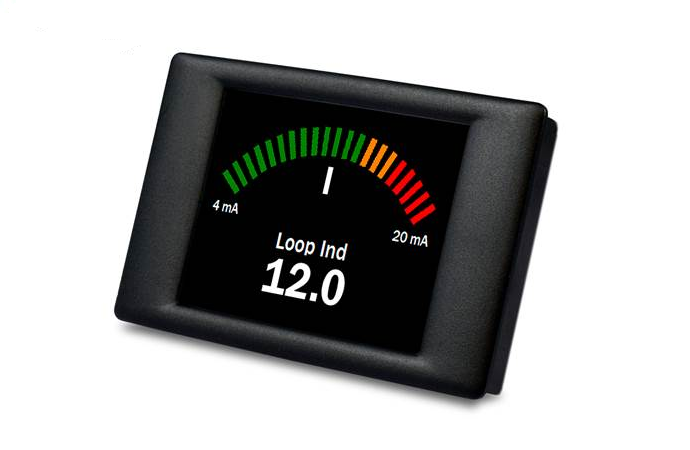

The SGD 24-M is a PanelPilot Compatible graphics display with a 320 x 240 pixel (QVGA) colour display and USB programming interface.

Colors, text labels, splash screen and input scaling can all be customized by the user through the software and then uploaded to the SGD 24-M through the USB connection.

Panel or enclosure installation of the display is simple, using a panel fixing clip to mount the display, and 4 screw terminals to connect the inputs.


• 2.4” color TFT screen
• Programmable with USB interface
• Measures 4 - 20mA current loop (also 10-50mA or 0-50mA possible)
• Operating voltage of 4V-30V d.c.
• Simple panel mounting solution


• Accuracy (overall error): 0.05 to 0.1 % (±1 count)
• Linearity: ±1 count
• Sample rate: 3 samples/sec
• Operating temperature range: 0 to 40 °C
• Supply voltage: 4 to 30 V d.c.
• Supply current: 35 to 190 uA
• Measurement range: 0 to 50 mA
• Lop volt drop: 0 to 5 V
