3 ½ Digit LCD Voltmeter - DPM 116

Save $13.53
$135.30
$121.77

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU DPM 116

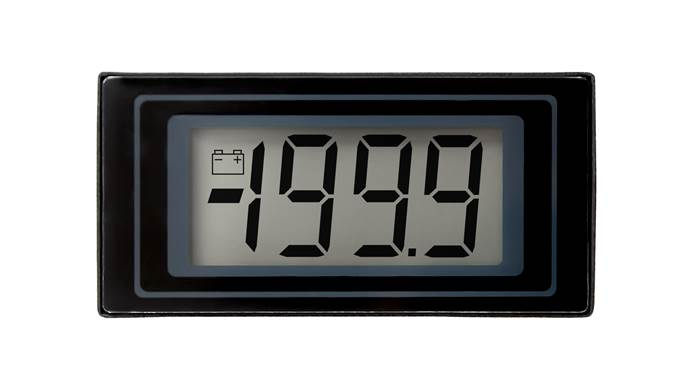

The DPM 116 is a 3½ digit LCD voltmeter with 12.5mm (0.5") digit height. It features 200mV d.c. full scale reading, auto-zero, auto-polarity and digital hold. The meter plugs directly into a SIL socket or can be panel mounted using the snap-in bezel and window. Connection to the meter is via a row of 12 pins.

Features:

• 3½ Digit LCD Voltmeter
• 200mV Full Scale Reading
• Auto-zero, Auto-polarity
• Digital Hold
• Snap-In Bezel

Specifications:

• Accuracy (overall error): 0.05 to 0.1% (±1 count)
• Linearity: ±1 count
• Sample rate: 3 samples/sec
• Operating temperature range: 0 to 50 °C
• Temperature stability: 100 ppm/°C
• Supply voltage (V+ to V-): 7.5 to 14 V d.c.
• Supply current: 150 uA
• Input leakage current (Vin = 0V): 1-10 pA
