3½ Digit LCD Voltmeter Single Rail Version - DPM 2000S

Save $13.64

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information

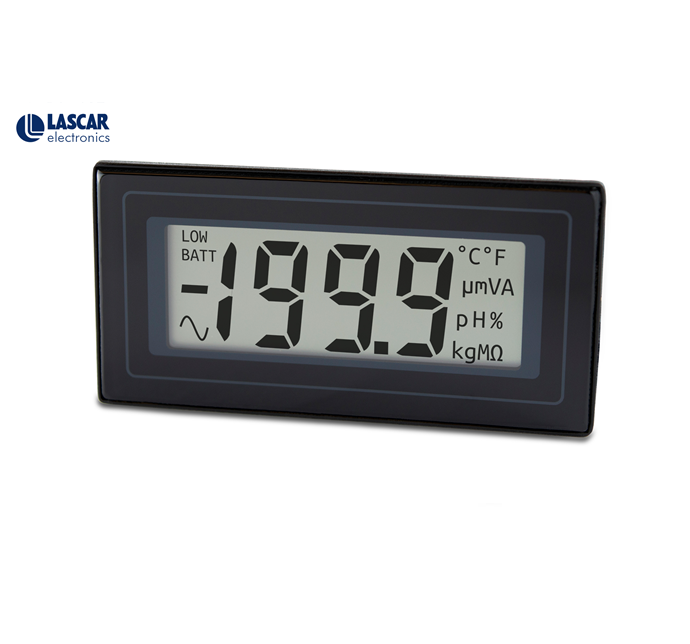

This compact panel meter features a 3½ digit LCD with 15mm (0.6”) digit height and a low-profile bezel for mounting. With a 200mV d.c. full scale reading, auto-zero, auto-polarity and programmable decimal points, this meter plugs directly into a single-in-line (SIL) socket or can be panel mounted using the snap-in bezel and window supplied.


- Accuracy (overall error): 0.05 % (typ.) ±1 count
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 3 samples/sec
- Supply voltage: (V+ to V-) 3.5 to 6.5 V
- Supply current: 500 μA
