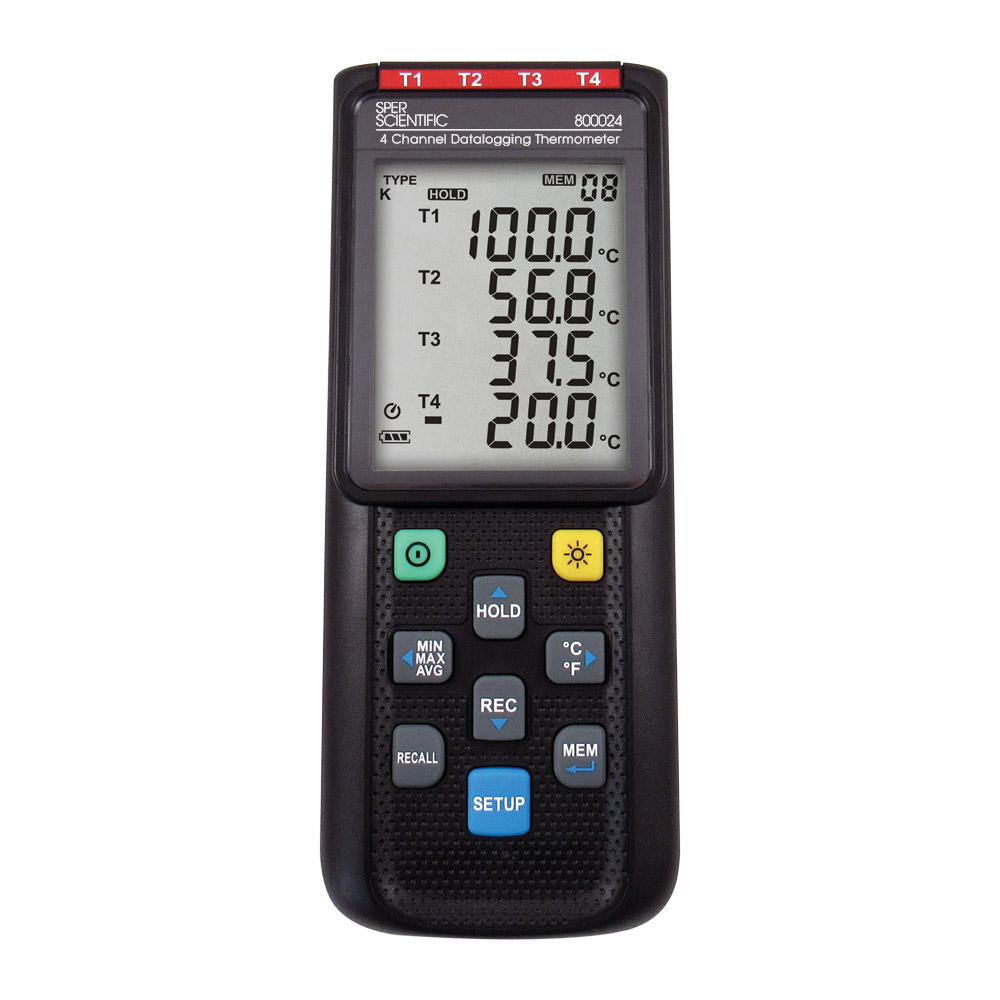

4-Channel Thermocouple Data Logger (K, J, E, or T) - 800024A

Features:

- Simultaneously display data from 4 K, J, E, or T type thermocouple probes on a large multi-line and back-lit LCD.
- Automatic data recording (16,000 data points) and manual data entry modes (99 data sets from the keypad)
- Convinient data transfer between the 800024A and your comuputer using a bi-directional USB port included cable, and graphic software.
- Adjustable auto power off timer and audible and visible Hi/Lo alarms.
- Calibrate ice point, or any other calibration standard.
- Min/Max/Ave and ? (T1-T2) values
- Includes protective foam-lined case, with 4 x AAA batteries, 2 beaded Type K wire probes, USB computer power cable and software.

Specifications

Type K:

- Range: -200 to 1372?C/-328 to 2501?F
- Resolution: 0.1?C < 600?C/1?C ? 600?C; 0.1?C < 600?C, 1?C ? 600?C, 0.1?F < 1000?F, 1?F ? 1000?F
- Accuracy: At ambient temperature of 18 to 28?C (64 to 82?F) ? (0.1% of reading + 0.7?C), ? (0.1% of reading + 1.4?F)

Type J:

- Range: -200 to 1000?C/-328 to 1832?F
- Resolution: 0.1?C < 600?C/1?C ? 600?C; 0.1?C < 600?C, 1?C ? 600?C, 0.1?F < 1000?F, 1?F ? 1000?F
- Accuracy: At ambient temperature of 18 to 28?C (64 to 82?F) ? (0.1% of reading + 0.7?C), ? (0.1% of reading + 1.4?F)

Type E:

- Range: -200 to 750 ?C/-328 to 1382?F
- Resolution: 0.1?C < 600?C/1?C ? 600?C; 0.1?C < 600?C, 1?C ? 600?C, 0.1?F < 1000?F, 1?F ? 1000?F
- Accuracy: Below -100?C(-148?F) ? (0.4% of reading + 0.7?C), ? (0.4% of reading + 1.4?F)

Type T:

- Range: -200 to 400?C/328 to 752?F
- Resolution: 0.1?C < 600?C/1?C ? 600?C; 0.1?C < 600?C, 1?C ? 600?C, 0.1?F < 1000?F, 1?F ? 1000?F
- Accuracy: Below -100?C(-148?F) ? (0.4% of reading + 0.7?C), ? (0.4% of reading + 1.4?F)
