4½ Digit LCD Voltmeter - DPM 160

Save $23.65
$236.50
$212.85

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU DPM 160

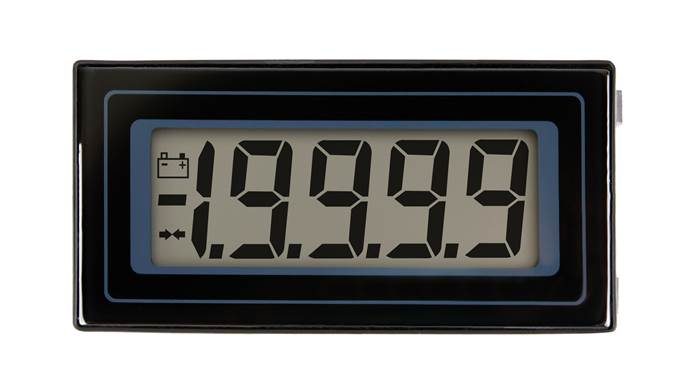

This panel meter features a 4½ digit LCD with 12.5mm (0.5") digit height and a low-profile bezel for mounting. With 200mV and 2V d.c. full scale readings, digital hold, auto-zero, and auto-polarity, this meter plugs directly into a single-in-line (SIL) socket or can be panel mounted using the snap-in bezel and window supplied.

Specifications:

- Accuracy (overall error): 0.005% (typ.) ±1 count
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 1.6 samples/sec
- Supply voltage: (V+ to V-) 6 to 14 V
- Supply current: 1 mA

Applications:

- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Low Power Voltage Measurement
