4½ Digit LCD Voltmeter Single Rail Version - DPM 160S
Save $18.59
$185.90
$167.31
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU DPM 160S

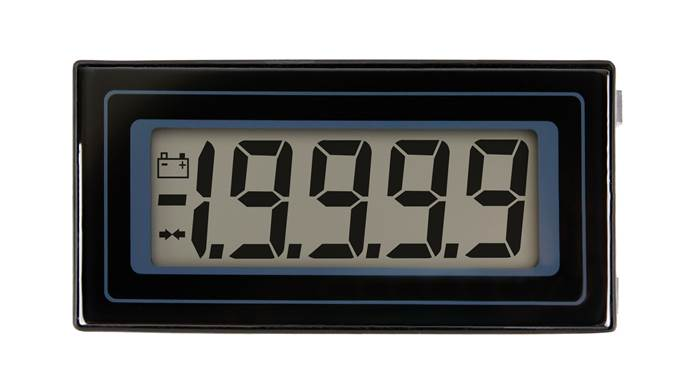

This panel meter features a 4½ digit LCD with 12.5mm (0.5") digit height and a low-profile bezel for mounting. With 200mV and 2V d.c. full scale readings, digital hold, auto-zero, and auto-polarity, this meter plugs directly into a single-in-line (SIL) socket or can be panel mounted using the snap-in bezel and window supplied.
Specifications:
Accuracy (overall error): 0.005% (typ.) ±1 count
Operating temperature: 0 to 50 °C (32 to 122 °F)
Sample rate: 1.6 samples/sec
Supply voltage: (V+ to V-) 3 to 7 V
Supply current: 1 mA
Applications:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Low Power Voltage Measurement
Specifications:
Accuracy (overall error): 0.005% (typ.) ±1 count
Operating temperature: 0 to 50 °C (32 to 122 °F)
Sample rate: 1.6 samples/sec
Supply voltage: (V+ to V-) 3 to 7 V
Supply current: 1 mA
Applications:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Low Power Voltage Measurement
