Bezel Mounted LCD Voltmeter with LED Backlighting - DPM 700S
Save $17.53
$175.34
$157.81
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU DPM 700S

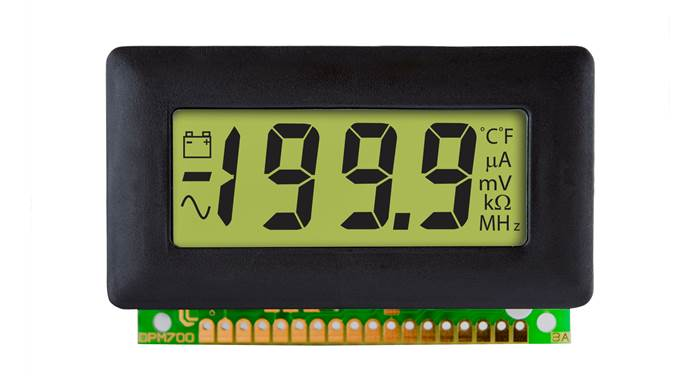

This single rail panel meter features a 3½ digit LCD with 12.5mm (0.5") digit height, annunciators and LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter is connected via solder pads and can be fitted into a panel via the bezel, window and clips provided.
Specifications:
- Accuracy (overall error): 0.05 0.1 % (±1 count)
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 3 samples/sec
- Supply Voltage: 3.5 to 7 V d.c.
- Supply Current: 500 uA
Application:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Low Power Voltage Measurement
