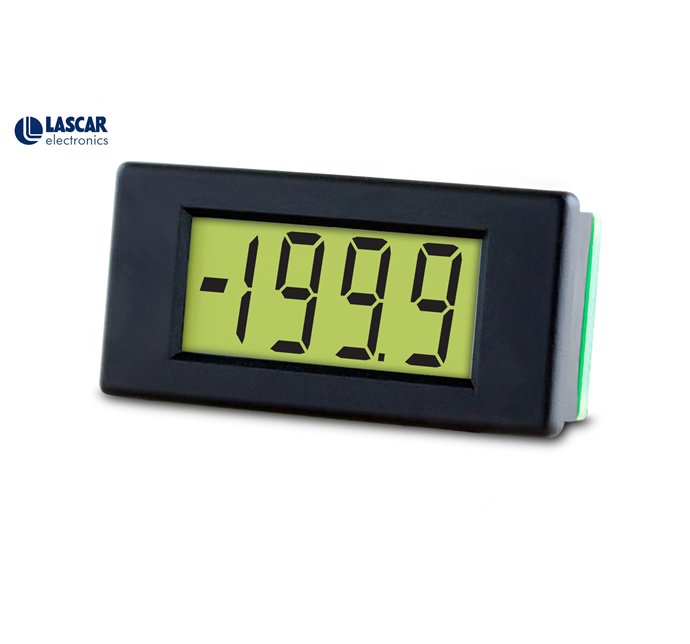

Compact 3½ Digit LCD Voltmeter - DPM 2AS-BL
$67.30
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU DPM 2AS-BL
This compact panel meter features a 3½ digit LCD with 8.25mm (0.32") digit height, one-piece snap-in housing and LED backlighting. With 200mV d.c. full scale reading, auto-zero, auto-polarity and user selectable decimal points, this meter can be used in 3.0 to 7.5V or 6.0 to 15.0V operation.
Specifications:
- Accuracy (overall error): 0.1% (typ.) ±1 count
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 2.5 samples/sec
- Supply voltage (9V mode): (V+ to V-) 6 to 15 V
- Supply Voltage (5V mode): (V+ to GND) 3 to 7.5
- Supply current (9V mode): (V+ to V-) 175 μA
- Supply current (5V mode): (V+ to GND) 350 μA
