Compact 4-20mA Loop Powered LCD Meter - DPM 342

Save $17.49
$174.90
$157.41

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU DPM 342

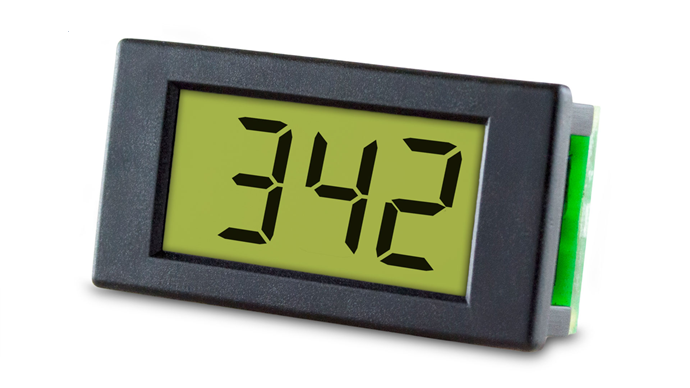

A compact loop powered indicator giving an accurate, zero corrected indication of 4-20mA loop current. Calibration is by two multi-turn potentiometers which allow sensitive adjustment of the instrument. The DPM 342 features an integral snap-in bezel, making installation easy. The module's LED back-lighting ensures a clear display, even under low light conditions. No soldering is required. Connection to the current loop is via two screw terminals. The correct decimal point is selected via a jumper link.

Features:

• 3½ Digit LED Voltmeter
• 4-20mA Loop Powered
• Wide Adjustment Range
• Auto-polarity on Display
• Low Volt Drop

Specifications:

• Accuracy (overall error): 0.05 to 0.1 % (±1 count)
• Linearity: ±1count
• Sample rate: 3 samples/sec
• Operating temperature range: 0 to 50 °C
• Temperature stability: 200 ppm/°C
• Supply voltage: 5 to 6 V d.c.
• Supply current: 4-20 mA
• Input leakage current: 1-10 pA
• Full scale reading (@20mA): 0 to 1999 Count
• Offset adjustment range + (span x 0.25): -950 to +950 Count
