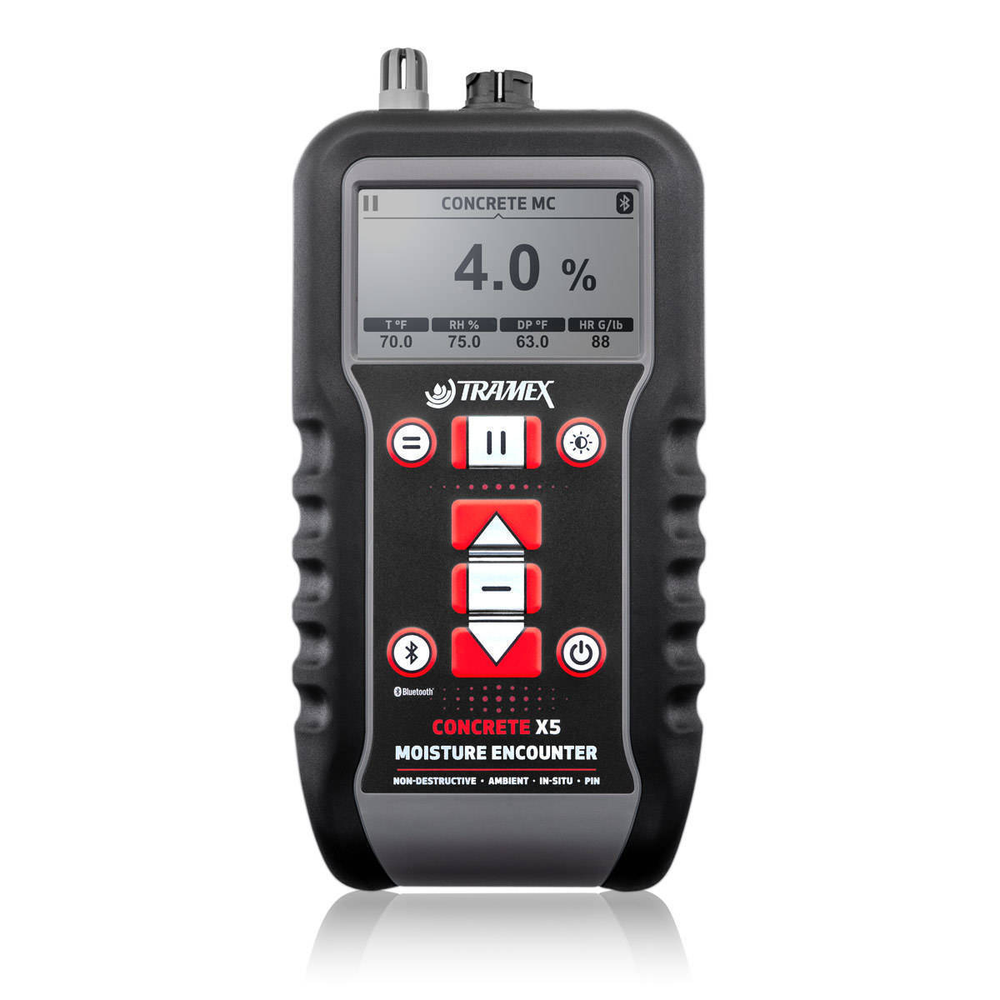

Concrete Moisture Encounter X5 - CMEX5

by Tramex
Save $72.00

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information

The Tramex Concrete Moisture Encounter X5 CMEX5 is a non-destructive digital multi moisture meter for concrete floors and slabs providing an instant and precise quantitative measurement of moisture content using Gravimetric testing as a baseline. The CMEX5 also provides Carbide Method equivalent readings for concrete and other cementitious substrates as well as comparative readings as per ASTM F2659. Incorporating plug-in ports for the optional Hygro-i2 relative humidity probe testing per ASTM F2170 and heavy-duty pin-type wood probes, this moisture meter transforms into the ideal all-in-one instrument for the flooring professional.

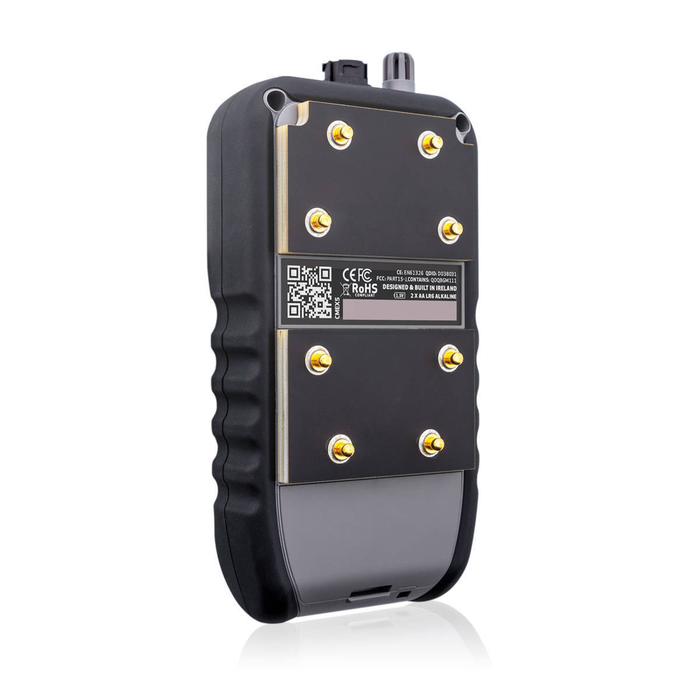

The Concrete Moisture Encounter X5 detects and evaluates the moisture conditions within the slab or screed by non-destructively measuring the electrical impedance. A low frequency electronic signal is transmitted into the material under test via the electrodes in the base of the instrument. The strength of this signal varies in proportion to the amount of moisture present in the material. The Concrete Moisture Encounter X5 determines the strength of the current and converts this to a moisture content value for concrete slabs and a comparative value for other cementitious floor screeds, displayed on a large clear digital dial.

Hygrometer mode:

When the optional Tramex Hygro-i2 relative humidity probe is plugged into the Concrete Moisture Encounter X5, the instrument automatically changes to Hygrometer Mode, allowing for in situ relative humidity (RH) testing of floor slabs per ASTM F2170 and BS 8201, 8203 Hood Method, as well as ambient conditions of temperature, relative humidity, dew point and mixing ratios. This resilient probe is reusable and can be checked regularly for calibration.

Wood pin-probe mode:

By plugging in the optional handheld or hammer probe, the Concrete Moisture Encounter X5 converts to Pin Mode and becomes a resistance type pin meter for determining the moisture content of wood and wood based products. The Concrete Moisture Encounter X5 provides moisture content readings from 5% to 30% in wood. A species adjustment table and a temperature adjustment chart are supplied for precise readings in woods of varying densities and readings taken at various temperatures.


- Bluetooth connection to IOS & Android Tramex App
- Non-Destructive Quantitative %MC
- Built-In Ambient RH Sensor
- In-Situ RH & Pin Probe connections
- 500+ Wood species available
- Optional Extension Bracket with Telescopic Handle


- Moisture content for Concrete: 0 to 6.9 %
- Comparative for Gypsum floor screed: 0 to 12CM
- Equiv Anhydrite/Concrete: 0 to 2.7 / 0 to 4.3
- Reference scale: 0 to 100
- Relative Humidity: 0 to 99%(with optional Hygro-i2 probe)
- Humidity accuracy: 0% to 99%RH, +/- 2% at 25 C/77 F
- Moisture content for wood: 5 to 30 % (with optional wood pin probes)
