Industrial USB temperature data logger with extended temperature range. Also includes Calibration Certificate - EL-USB-1-PRO CAL-T


Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
  • -40 to +125º (-40 to +257ºF) measurement range
  • Stainless steel (316 grade) construction
  • Environmental protection to IP-67
  • USB interface for setup and download
  • Supplied with high capacity battery and control software
  • Includes calibration certificate

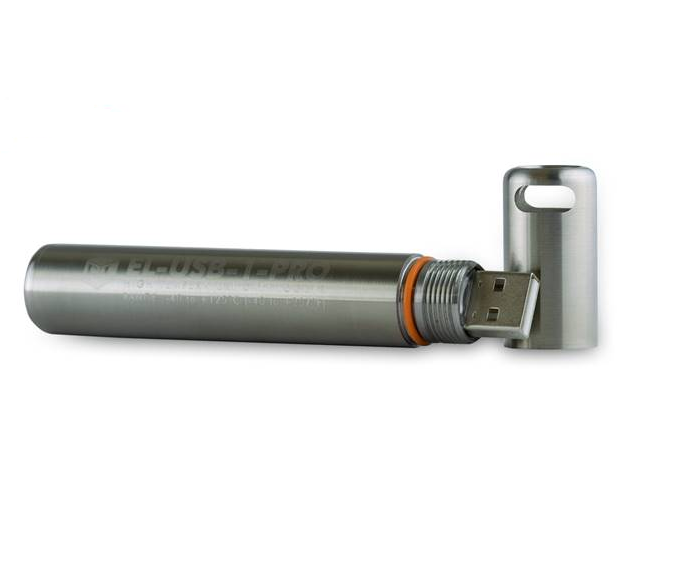

The EL-USB-1-PRO data logger measures and stores up to 32,510 temperature readings over the -40 to +125ºC (-40 to +257ºF) measurement ranges. The logger is housed in a stainless steel case to protect the logger from corrosion, impact and moisture (to IP-67). A long life lithium battery is included which allows logging for up to 3 years.

The user can easily set up the logger and view downloaded data by plugging the device into a PC's USB port and using the supplied software. Data can then be graphed, printed and exported to other applications. The data logger configuration software is compatible with Windows 2000/XP/Vista/7.

Download the latest version of the configuration and graphing software from the link below.


Specification Min. Typ. Max. Unit
Measurement range -40 (-40)   +125 (+257) °C (°F)
Internal resolution   0.1   °C (°F)
Accuracy (overall error)   ±0.2 (±0.4) * ±1.6 (±2.9) °C (°F)
Logging rate every 1s   every 12hr -
Operating temperature range -40 (-40)   +125 (+257) °C (°F)
2/3AA 3.6V Lithium Battery Life 1** 2*** 3 Year

* Between 0º and 40ºC

** 10 second logging rate @ -20ºC

*** 10 second logging rate @ +80ºC
