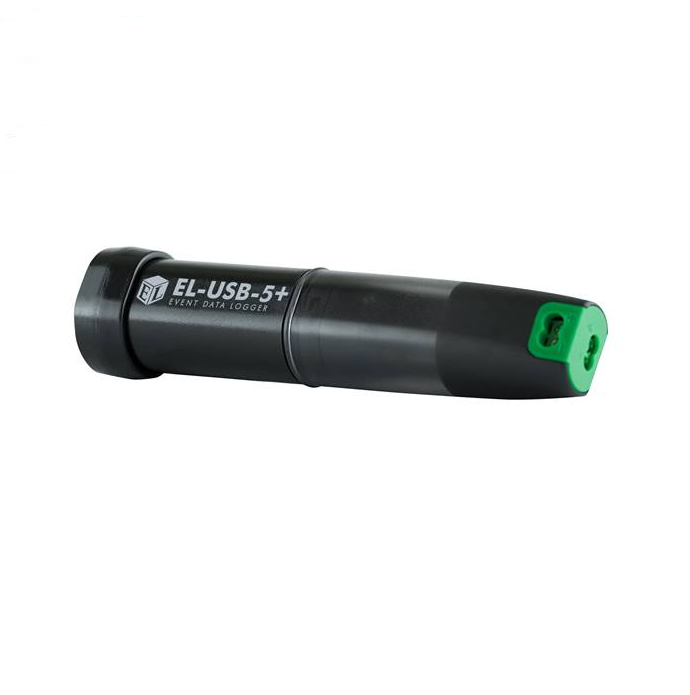

Event, Count and State Data Logger with USB - EL-USB-5+
Save $20.57
$205.70
$185.13
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU EL-USB-5+
This standalone data logger can record over 1,000,000 events, state changes and count events. Fast logging rates allow event capturing at speeds of up to four times per second and state changes at speeds of up to two times per second. Event counting can operate at speeds of up to 100 times per second (when the LED's are turned off).
The data logger is supplied with a cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½AA battery and wall mount clip.
Specification:
- Maximum Event/State Change Frequency: 2Hz
- Maximum Count / Count Per Frequency: 100Hz
- Minimum time in State: 100ms
- Input Voltage: 3 to 28V d.c.
- Battery Life: 1 Year
The data logger is supplied with a cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½AA battery and wall mount clip.
Specification:
- Maximum Event/State Change Frequency: 2Hz
- Maximum Count / Count Per Frequency: 100Hz
- Minimum time in State: 100ms
- Input Voltage: 3 to 28V d.c.
- Battery Life: 1 Year
