HALO PVDF Body pH Electrode with Bluetooth - FC2022

Save $16.94
$338.80
$321.86

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU FC2022

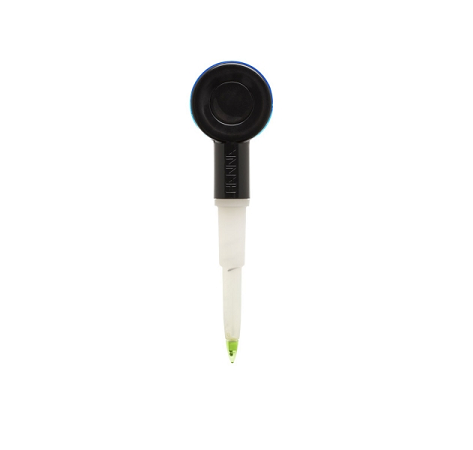

The FC2022 HALO is a Bluetooth Smart (Bluetooth 4.0) Foodcare pH and temperature electrode composed of chemically resistant PVDF body. This electrode has a unique open junction design in which there is a viscolene (hard gel) electrolyte layer that is free of silver chloride (AgCl) between the sample to be measured and the internal reference cell.

Features:

• Low Temperature Glass Formulation
• Conical Glass Tip
• Built in Temperature Sensor
• PVDF Body
• Open Junction Reference
• One Press Connect
• Status Indicator
• Easy to Replace Battery

Specifications:

• Body Material: PVDF
• Reference: single, Ag/AgCl
• Junction/Flow Rate: open
• Electrolyte: viscolene
• Range pH: 0 to 12
• Max Pressure: 0.1 bar
• Tip Shape: conic (6 x 10 mm)
• Diameter: 6 mm
• Body Length/Overall Length: 70 mm / 134 mm
• Recommended Operating Temperature: 0 to 60°C (32 to 140°F)
• Environment: 0.0 to 50.0°C (32.0 to 122.0°F), electronic module is not waterproof
• Temperature Sensor: yes
• Matching Pin: no
• Amplifier: yes
• Digital: yes
• Connection: Bluetooth Smart (Bluetooth 4.0), 10 m (33') range
• Battery Type/Life: CR2032 3V lithium ion / approximately 500 hours
• Applications dairy, meat, milk, semi-solid foods, yogurt
