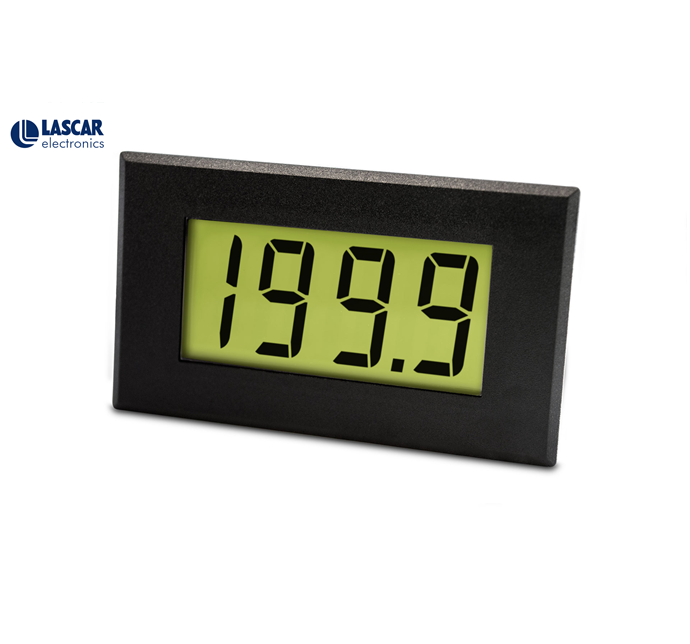

Large 200mV LCD Single Rail Voltmeter with LED Backlighting - DPM 950S
Save $16.50
$165.00
$148.50
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU DPM 950S
This large panel meter features a 3½ digit LCD with 19mm (0.75") digit height and LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into a 16-way IDC socket and can be fitted into a panel via the bezel, window and clips provided. The DPM 950S is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
Specifications:
- Accuracy (overall error): 0.05 0.1 % (±1 count)
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 3 samples/sec
- Supply Voltage: 3.5 to 6.5 V d.c.
- Supply Current: 500 uA
Specifications:
- Accuracy (overall error): 0.05 0.1 % (±1 count)
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 3 samples/sec
- Supply Voltage: 3.5 to 6.5 V d.c.
- Supply Current: 500 uA
