Large 200mV LCD Voltmeter with Red/Green Programmable Backlighting - DPM 950S-FPSI

Save $19.03
$190.30
$171.27

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU DPM 950S-FPSI

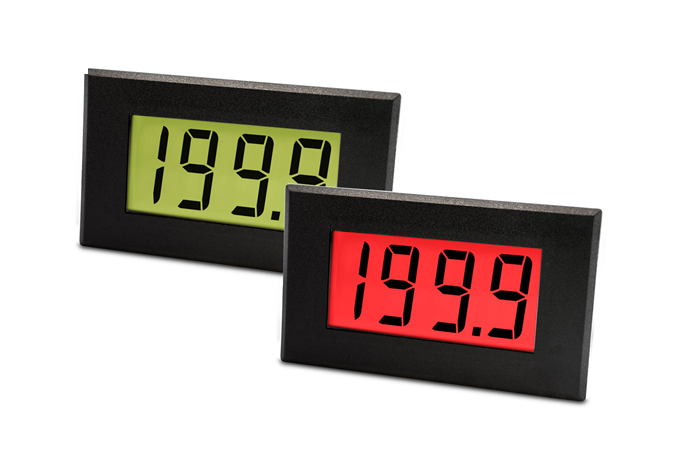

The DPM 950S-FPSI is a standard 3.5 Digit LCD Voltmeter that can also be used as a dual color go-stop display. This functionality is ideal for simplifying monitoring applications, where an operator needs to know the status of the equipment at a glance.

During standard operation the back-light is green, however if the reading goes outside the user programmable thresholds, the display will turn red. The user can then read off the actual value from the display and take corrective action.

3 open collector outputs are included, that indicate high, ok and low conditions. Both the back-light color and outputs can be inverted independently. Module setup is a simple operation, using a six-way DIP switch and two push buttons. No special tools or equipment are required.

Features:

• 19mm (0.75“) Digit Height
• Dual colour backlight with programmable high and low levels
• Open collector outputs that mirror the backlight status
• Auto-zero, auto-polarity
• 200mV d.c. Full Scale Reading (F.S.R.)

Specifications:

• Accuracy (overall error): 0.05 to 0.1 % (±1 count)
• Linearity: ±1 count
• Sample rate: 3 samples/sec
• Operating temperature range: 0 to 50 °C
• Temperature stability: 100 ppm/°C
• Supply voltage: 4.5 to 5.5 V d.c.
• Supply Current (excluding backlight): 500 mA
• Back-light supply current: 35 mA
• Input leakage current (Vin = 0V): 10 pA
