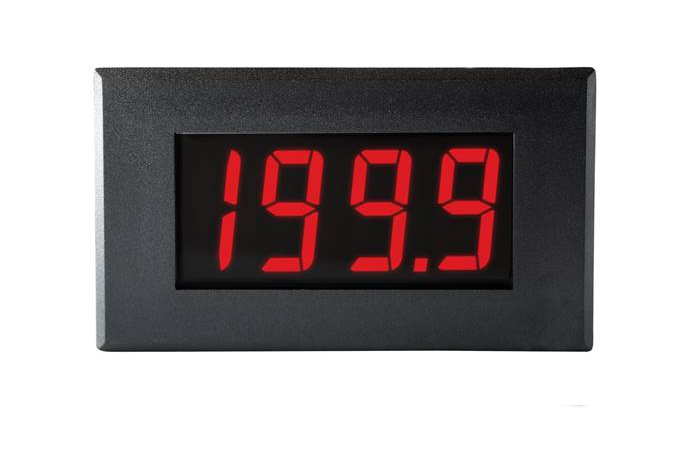

Large 200mV LED Voltmeter - DPM 959B
Save $14.30
$143.00
$128.70
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU DPM 959B
A compact meter ideally suited to applications where excellent readability under all lighting conditions is required. The meter is fitted with high efficiency LEDs, which together with the integral red filter, give a high contrast display with 19mm digit height. The meter can be easily scaled by the user to indicate volts, amps or other engineering units and may be used in single-ended, differential, ratio-metric or floating input modes.
Features:
• 19mm (0.75") Digit Height
• Selectable Decimal Points
• Auto-zero
• Auto-polarity
• 200mVd.c. Full Scale Reading
Specifications:
• Accuracy (overall error): 0.05 to 0.1 % (±1 count)
• Linearity: ±1count
• Sample rate: 3 samples/sec
• Operating temperature range: 0 to 50 °C
• Temperature stability: 150 ppm/°C
• Supply voltage (V+ to V-): 4.75 to 5.25 V d.c.
• Supply Current: 50 to 90 mA
• Input leakage current (Vin = 0V): 1 to 10 pA
• Warm-up time: 10 minutes
