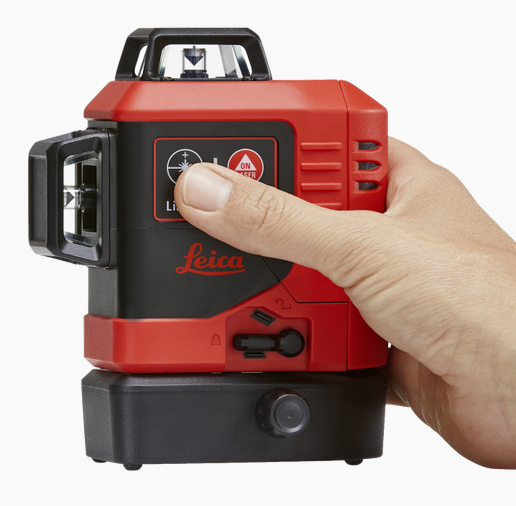

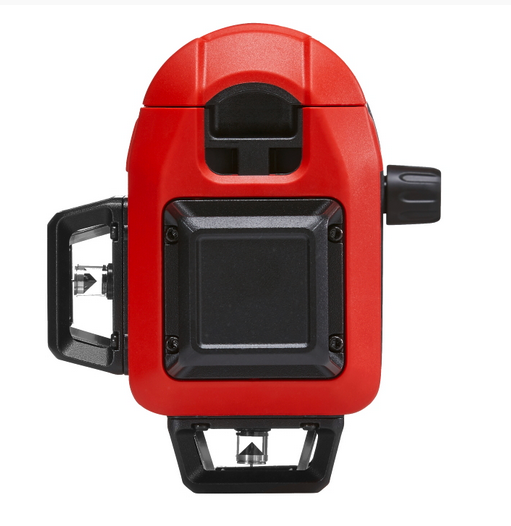

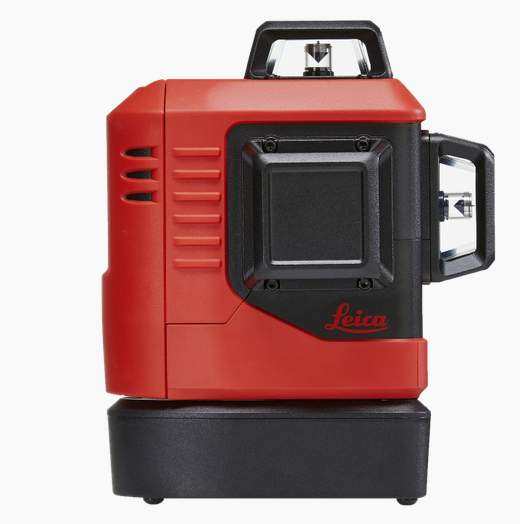

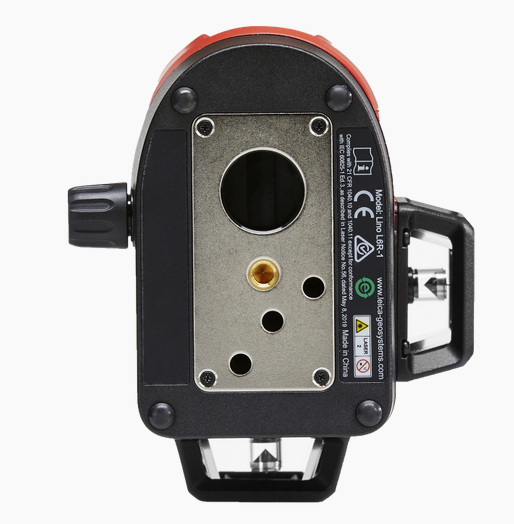

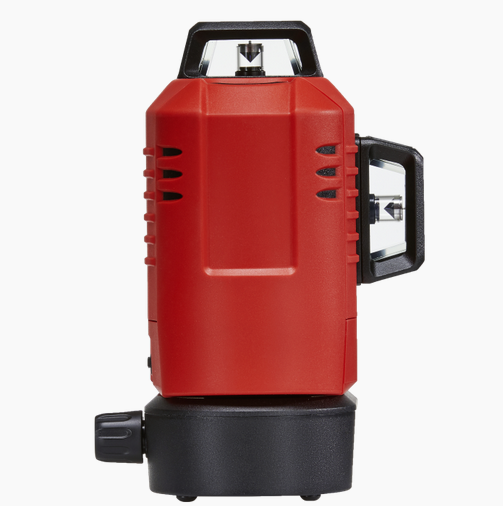

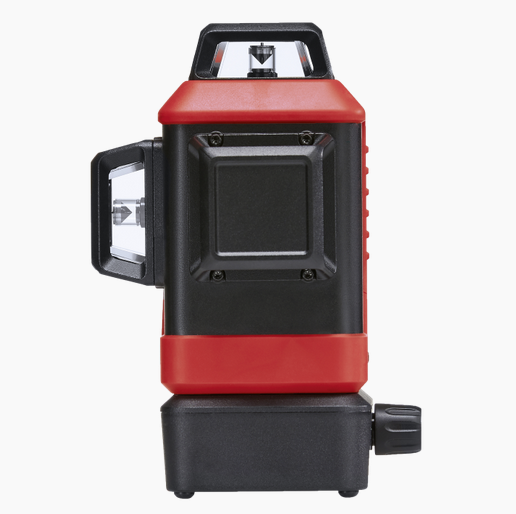

Leica Lino L6R-1, 3x360 Laser red beam ,Li-ion, wallmount, Rugged case

$880.00

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU LG912969
Features:

- Horizontal and two vertical 360° red laser lines
- High visibility due to red Ultra-power laser diodes
- Self-leveling over wide range
- Fixed plumb point due to integrated base
- Adjustable strength of laser lines
- Operating range of up to 25 metres
- Li-Ion power for up to 36 h operation
- Uninterrupted working with Triple-Power concept
- Smart magnetic adapters for easy positioning

Specifications:

- Beam horizontal: 360°
- Beam vertical: l2 x 360°
- Intersection points: up, down, right, left, front, back (90° / 180°)
- Range/diameter*: 25m / 50m (82ft / 164ft)
- Range/diameter*with Leica RGR 200 receiver: 70m / 140m (230ft / 460ft)
- Leveling accuracy: ± 0.2mm/m (± 0.002in/ft)
- Horizontal and Vertical line accuracy: ± 0.3mm/m (± 0.004in/ft)
- Intersection point accuracy: ± 0.2mm/m (± 0.002in/ft)
- Self-leveling range: ± 4°
- Self-leveling time: < 3sec
- Fine adjustment: ±10° around vertical intersection point
- Out-of-level warning: yes-blink lines every 5 s
- Leveling: pendulum (lockable)
- Laser: 635nm/class 2 (acc. to IEC 60825-1)
- Protection class: IP54 (dust and splash water)
- Battery type: Lino Li-Ion battery pack5200 mAh / 18.7 Wh or 3xAA Alkaline
- Laser line intensity (selectable): 100%, 75%, 50%
- Operating time with Li-Ion: up to 36h (3 beam, 50% power)
- Dimensions: 124 x107 x 154mm (4.88 x 4.21 x 6.06in)
- Weight: 781g (1.71 lbs)
- Operation temperature: -10 to +50°C (14 to 122°F)
- Storage temperature: -25 to +70°C (-13 to +158°F)
- Laser line width @ 5m(16.4ft)distance: < 2mm (< 0.08in)
- Tripod thread1/4in (5/8in with adapter)
- Pulse power for receiver: yes

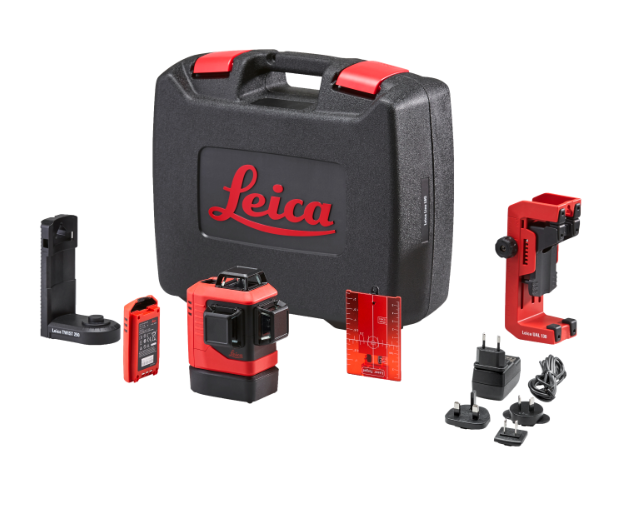

Includes:

- Leica Lino L6R
- Quick start guide
- Rugged case
- Li-Ion battery pack incl. charger and plugs
- Alkaline battery tray
- Laser target
- TWIST 250 magnetic multi functional adapter
- UAL 130 wall-mount adapter
- Safety instructions
- Calibration certificate
- Warranty card
