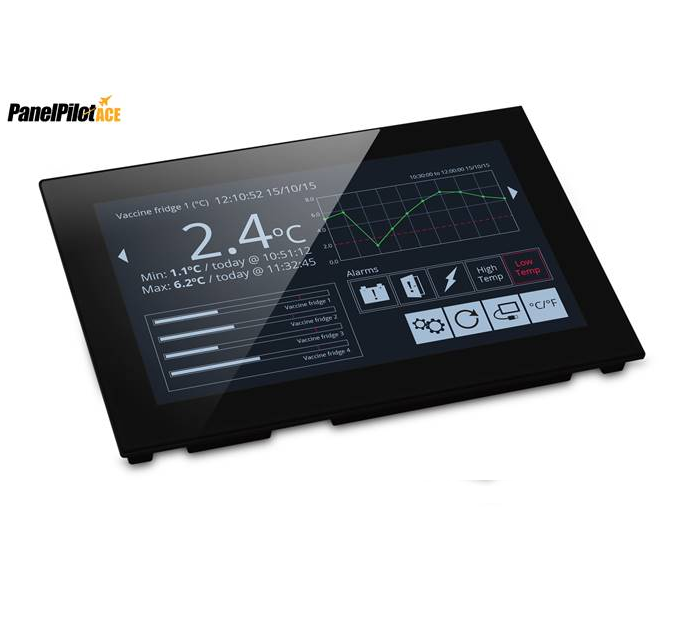

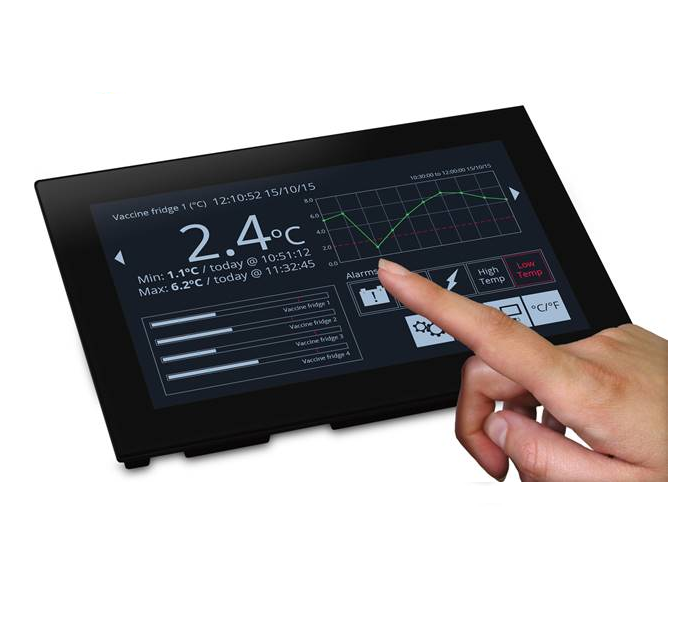

7” Display with Analogue, Digital, PWM, and Serial Interfaces - SGD 70-A
Save $105.50
$1,055.01
$949.51
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU SGD 70-A
SGD 70-A is a 7” capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters. This off the shelf display features a wealth of hardware interfaces, including four 16-bit bipolar analogue inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs, PID Control, Ethernet FTP for logged data, multi-channel data logging and trend graphs, serial RS232 and RS485 and an additional add on board to measure temperature.
Specifications:
- Display: 7” TFT with 16.7M colours
- Touchscreen: Capacitive touch screen
- Resolution: 1024 x 600 pixel
- Processor: Freescale i.MX 6SoloX (ARM Cortex A9 & M4)
- Analogue Inputs: Four 16-bit to ±40V d.c.
- Supply: 5 to 30 V d.c. (300 mA typical at 5 V d.c.)
- Outside Dimensions: 186 mm (7.3”) x 122 mm (4.3”) x 21 mm (0.8”)
