RHTemp1000 Data Logger

Save $120.45
$1,204.50
$1,084.05

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU RHTemp1000

Note: The IFC400 package is a required purchase for this device

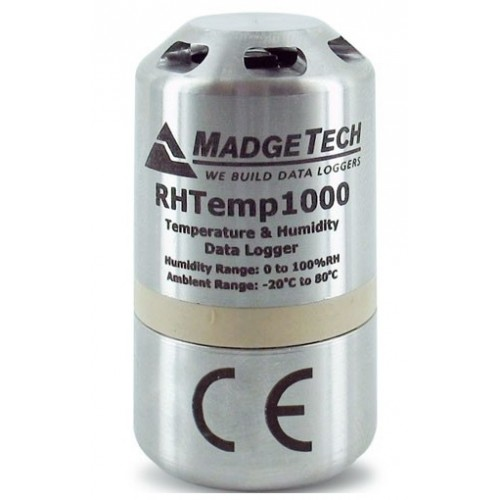

The RHTemp1000 humidity and temperature data logger is a rugged, battery powered, stand alone device which can be used to automatically record humidity and temperature. This all in one compact, portable, easy to use device is able to measure and record data for up to 21,845 humidity and temperature measurements.

The RHTemp1000 is ideal for use in harsh environments. Its real time clock ensures that all the data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere.

The RHTemp1000 makes data retrieval quick and easy. Simply plug the device into an empty COM or USB port and our user-friendly software does the rest.

Specifications:

Temperature:

- Temperature Sensor: Resistance Temperature Detector (RTD)
- Temperature Range: -40 ºC to +80 ºC (-40 ºF to +176 ºF)
- Temperature Resolution: 0.01 ºC
- Temperature Response Time in Air: t63 - 8 minutes to 63% of change/t90 - 68 minutes to 90% of change
- Calibrated Accuracy: ±0.5 ºC (0 ºC to 55 ºC)

Humidity:

- Humidity Sensor: Capacitive Polymer
- Humidity Range: 0 %RH to 100 %RH (non-condensing)
- Humidity Resolution: 0.1 %RH
- Humidity Response Time in Air: t63 - 30 seconds to 63% of change/t90 - 2 minutes to 90% of change
- Calibrated Accuracy: ±3.0 %RH maximum

Data Logger:

- Start Modes: Software programmable immediate start or delay start up to 24 months in advance
- Real Time Recording: May be used with PC to monitor and record data in real time
- Memory: 16,350 readings per channel
- Password Protection: Yes
- Reading Rate: 1 reading every second up to 1 reading every 24 hours
- Calibration: Digital calibration through software
- Calibration Date: Automatically recorded within device
- Memory Wrap: Yes
- Data Format: Date and time stamped ºC, ºF, K, ºR; %RH, mg/mL, Dew Point
- Battery Life: 2 years typical at 25 °C (15 minute reading rate)
- Battery Type: 3.6V lithium battery included, user replaceable
- Time Accuracy: ±1 minute/month at 25 ºC
- Required Interface Package: IFC400 or IFC406
- Computer Interface: USB (interface cable required); 125,000 baud
- Operating System Compatibility: Windows XP SP3/Vista/Windows 7/Windows 8
- Operating Environment: -40 ºC to +80 ºC (-40 ºF to +176 ºF), 0 %RH to 100 %RH (non-condensing)
- Dimensions: 1.7 in x 0.97 in x 0.97 in (42 mm x 24.6 mm x 24.6 mm)
