Round Hole Fitting LED Voltmeter - EM32-1B-LED
Save $14.20
$142.01
$127.81
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU EM32-1B-LED

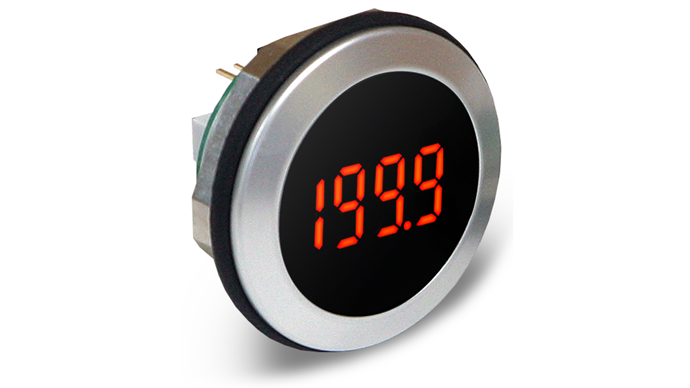

This panel meter features a 3½ digit LED display with 8mm (0.31") digit height in a low profile housing. Fitted inside a threaded body which allows easy mounting of the product through a 32.5mm (1.28”) hole, this unique enclosure is ideal for quick mounting. A rubber seal provides waterproof protection to IP67 / NEMA 4X when fitted between the meter and mounting panel. Connection is via screw terminals.
Specifications:
- Range: 200 mV d.c.
- Accuracy (overall error): 0.1 % (±1 count)
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 2.5 samples/sec
- Supply Voltage: 4.75 to 5.25 V d.c.
- Supply Current: 50 100 mA
Applications:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
Specifications:
- Range: 200 mV d.c.
- Accuracy (overall error): 0.1 % (±1 count)
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 2.5 samples/sec
- Supply Voltage: 4.75 to 5.25 V d.c.
- Supply Current: 50 100 mA
Applications:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
