Splash-Proof Ultra Low Profile LCD Voltmeter, 9 Pin Version - SP 400

Save $9.90
$99.00
$89.10

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU SP 400

This ultra low profile panel meter features a 3½ digit LCD with 9.75mm (0.38") digit height and green LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into a 9-way SIL socket and can be fitted into a panel via the fixing clip. Splash-proof protection is achieved by fitting the seal supplied.

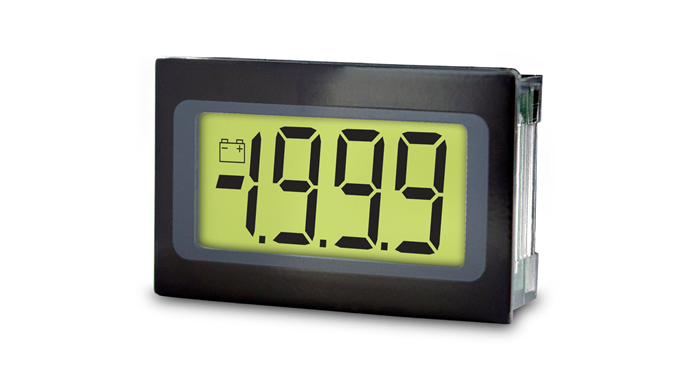

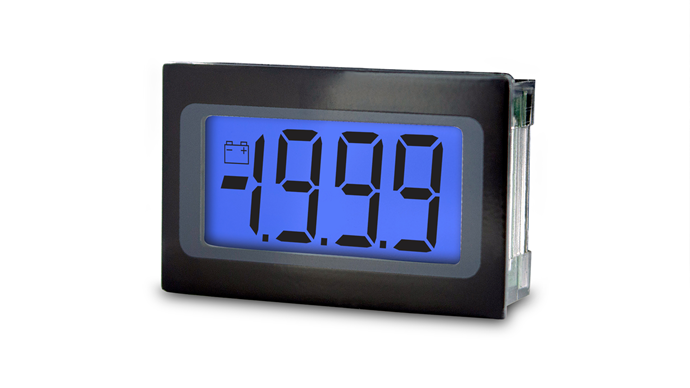

Available in Green or Blue back-light.

Specifications:

- Accuracy (overall error): 0.1 % (±1 count)
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 2.5 samples/sec
- Supply Voltage (V+ to GND): 3 5 to 7.5 V d.c.
- Supply Voltage (V+ to V-): 6 to 15 V d.c.
- Supply Current (V+ to GND): 350 uA
- Supply Current (V+ to V-): 175 uA

Applications:

- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Automotive Projects
