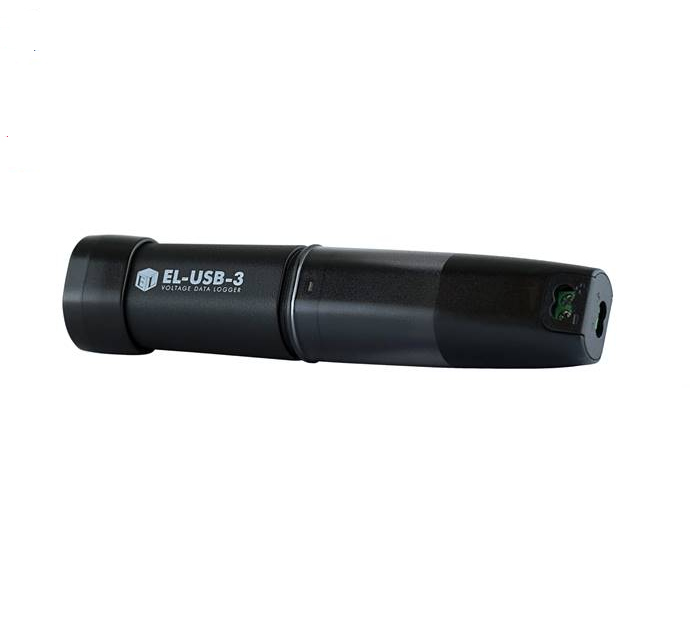

Voltage USB Data Logger - EL-USB-3

Save $14.85
$148.50
$133.65

1 in stock! Order now.
SKU EL-USB-3

This data logger measures and stores up to 32,510 voltage readings over a 0-30V d.c. measurement range.

Initial configuration of the data logger is done with Lascar's EL-WIN-USB software running on Windows (compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10).

The data can then be graphed, printed and exported to other applications. The data logger is supplied complete with a long-life lithium battery. Correct functioning of the unit is indicated by flashing red and green LED. The data logger features a pair of screw terminals and is supplied complete with a set of measurement leads terminating in crocodile clips.

Features:

* 0-30V d.c. Measurement Range
* Logging Rates between 1s and 12hr
* Stores 32,510 readings
* Connection via two screw terminals
* USB Interface for Set-up and Data Download
* User-Programmable Alarm Thresholds
* Red and Green LED Status Indication
* Replaceable Internal Lithium Batter

This logger comes with free software and USB connection to attach to your computer.

Windows Control Software

Easy to install and use, the control software runs under Windows 7, 8 and 10 operating systems. It allows the user to set up and download any EL-USB-3. The latest version of the control software may be downloaded.
