2.4” Waterproof programmable TFT Panel Meter - SGD 24-M-IP

Save $43.56

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information

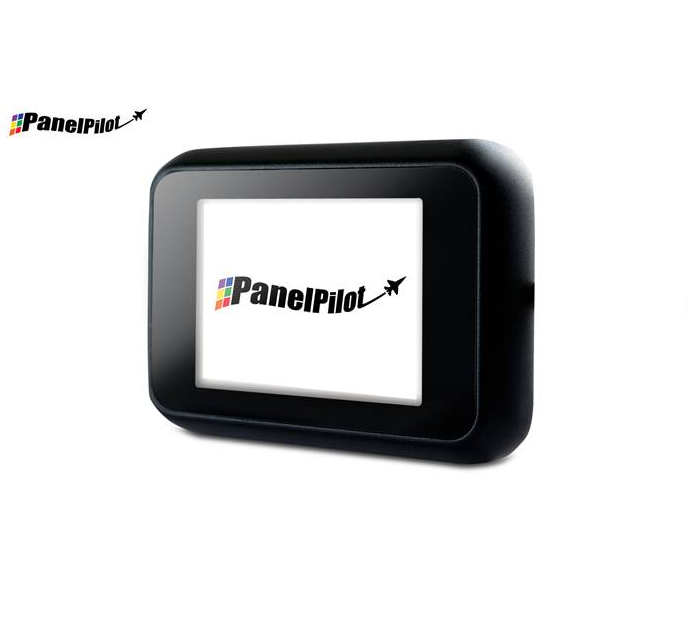

The SGD 24-M-IP is a waterproof PanelPilot Compatible IP67 graphics display with a 320 x 240 pixel (QVGA) colour display and USB programming interface.
Using the PanelPilot software (available for Windows XP, 2000, Vista and Windows 7), users are able to choose from an ever-increasing number of configurations which can then be customized to their needs.

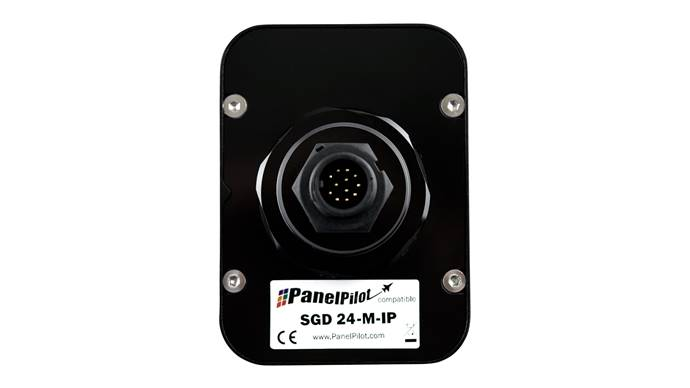

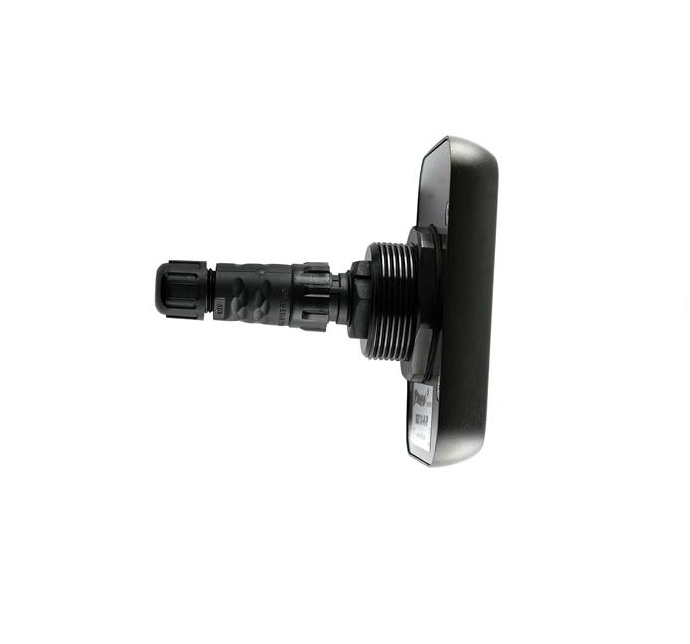

Colors, text labels, splash screen and input voltage scaling can all be customized by the user through the software and then uploaded to the SGD 24-M-IP through the USB connection. When setup is complete, the settings can be saved and then uploaded to the meter using the supplied USB cable. Panel or enclosure installation of the finished module is simple, using the 32mm nut and the IP67 connector supplied with the unit.

Note that the SGD 24-M-IP does not feature touch-screen functionality and therefore is not compatible with configurations requiring touch-input.


• 2.4” color TFT screen
• IP67 and NEMA 6 rated
• Rugged and scratch resistant Corning® Gorilla® Glass window
• IP67 12 way connector supplied
• 0 to 40V d.c. measurement range


• Accuracy (overall error): 0.05 to 0.1 % (±1 count)
• Linearity: ±1count
• Sample rate: 3 samples/sec
• Operating temperature range: 0 to 40 °C
• Temperature stability: 100 ppm/°C
• Supply voltage: 4 to 30 V d.c.
• Supply current: 95 uA
• Measurement voltage (single ended): 0 to 40 mA
