4.3” Display with Analogue, Digital, PWM and Serial Interfaces - SGD 43-A
Save $61.82
$618.20
$556.38
5 in stock! Order now.
SKU SGD 43-A

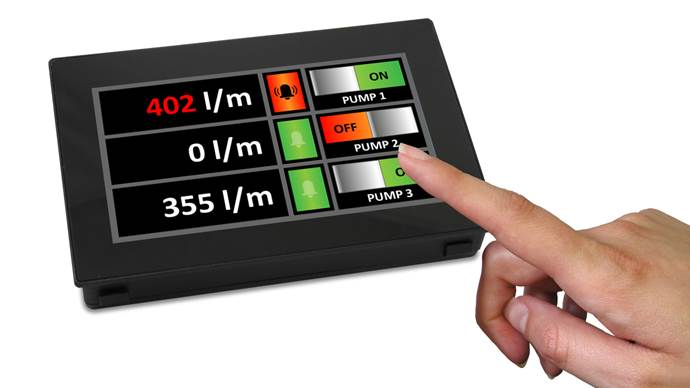

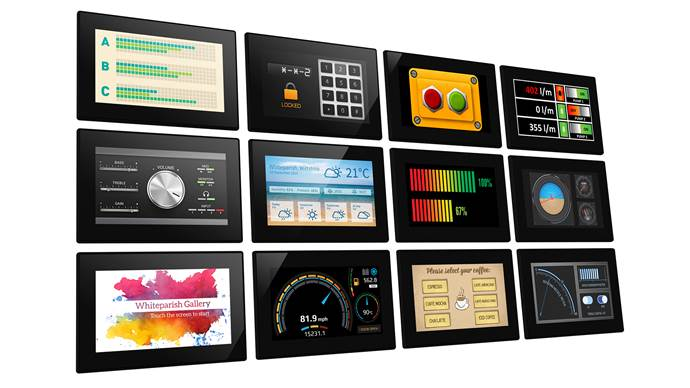

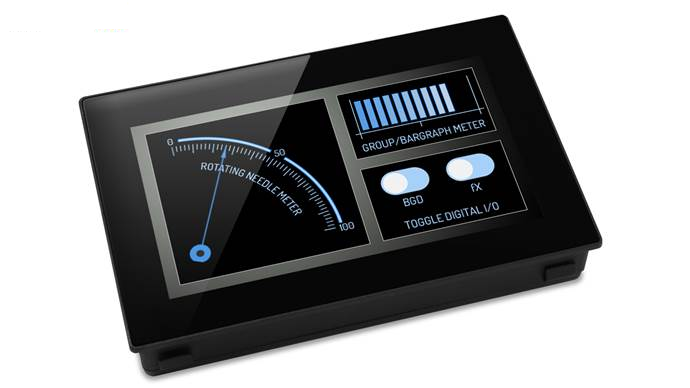

SGD 43-A is a 4.3” capacitive touch display designed for use with PanelPilotACE Design Studio, a free drag-and-drop style software package for rapid development of advanced user interfaces and panel meters. This off the shelf display features a wealth of hardware interfaces, including four 16-bit bipolar analogue inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs and serial RS232.
Specifications:
- Display: 4.3” TFT with 262k colours
- Touchscreen: Capacitive touch screen
- Resolution: 480 x 272px
- Processor: Freescale i.MX283 (454MHz, 32bit, ARM 9)
- Analogue Inputs: Four 16-bit to ±40V d.c.
- Supply: 5 to 30V d.c. (300mA typical at 5V d.c.)
- Outside Dimensions: 119.3 (4.7) x 79.8 (3.1) x 20.0 (0.8) mm (in)
Specifications:
- Display: 4.3” TFT with 262k colours
- Touchscreen: Capacitive touch screen
- Resolution: 480 x 272px
- Processor: Freescale i.MX283 (454MHz, 32bit, ARM 9)
- Analogue Inputs: Four 16-bit to ±40V d.c.
- Supply: 5 to 30V d.c. (300mA typical at 5V d.c.)
- Outside Dimensions: 119.3 (4.7) x 79.8 (3.1) x 20.0 (0.8) mm (in)
