200mV d.c. Voltmeter with Single-Hole Mounting - EMV 1025S-01
Save $8.74
$87.45
$78.71
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU EMV 1025S-01

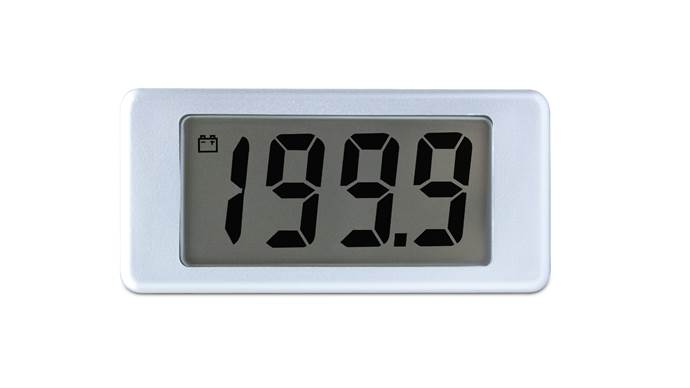

The EMV 1025S-01 is a 3? digit LCD voltmeter with 12.5mm (0.5") digit height. It features a full scale reading of 200mV and a decimal point fixed at 199.9. The meter can be panel mounted by drilling a 5.5mm (0.22") hole. Connection to the meter is via three wires.
Features:
• 3½ Digit LCD Meter
• 200mV Full Scale
• Wire Connections
• Round Hole Mounting
Specifications:
• Accuracy (overall error): 0.1 %(±2 count)
• Linearity: ±1 count
• Displayed reading: -1999 to 1999
• Sample rate: 3 samples/sec
• Operating temperature range: 0 to 50 °C
• Temperature stability: 100 ppm/°C
• Supply Voltage: 3.5 to 7 V d.c.
• Supply Current: 250 mA
Features:
• 3½ Digit LCD Meter
• 200mV Full Scale
• Wire Connections
• Round Hole Mounting
Specifications:
• Accuracy (overall error): 0.1 %(±2 count)
• Linearity: ±1 count
• Displayed reading: -1999 to 1999
• Sample rate: 3 samples/sec
• Operating temperature range: 0 to 50 °C
• Temperature stability: 100 ppm/°C
• Supply Voltage: 3.5 to 7 V d.c.
• Supply Current: 250 mA
