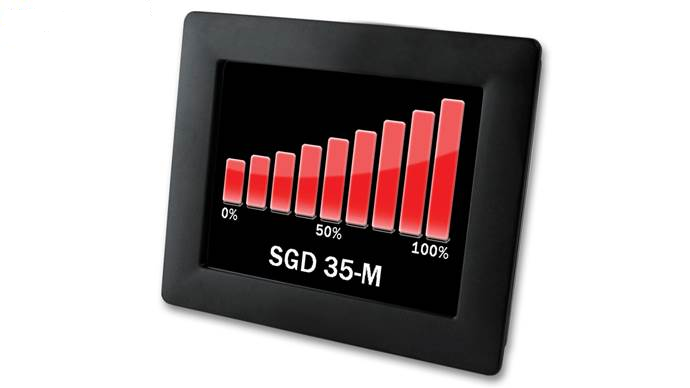

3.5” Programmable TFT Panel Meter - SGD 35-M
Save $19.91
$199.10
$179.19
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU SGD 35-M
The SGD 35-M is a programmable panel meter featuring dual analogue inputs, alarm outputs and 3.5” TFT colour touchscreen display. Configured using the free PanelPilot M Software, choose from an ever-increasing number of configurations including bar-graph, tank level, analogue style and trend graphs. Then customise colours, text labels, units and input scaling before uploading to a display via USB.
Specifications:
- Display: 3.5” colour TFT screen
- Resolution: 320 x 240 pixel (QVGA)
- Operating Voltage: 4 to 30V d.c.
- Measurement range: 0 to 40V d.c.
- Viewing Area: 70.1 mm (2.8”) x 52.7 mm (2.1”)
Specifications:
- Display: 3.5” colour TFT screen
- Resolution: 320 x 240 pixel (QVGA)
- Operating Voltage: 4 to 30V d.c.
- Measurement range: 0 to 40V d.c.
- Viewing Area: 70.1 mm (2.8”) x 52.7 mm (2.1”)
