3½ Digit LCD Voltmeter - DPM 125
Sold out
$101.20
$91.08
Out of stock with supplier, this item can't be ordered at this point in time.
SKU DPM 125

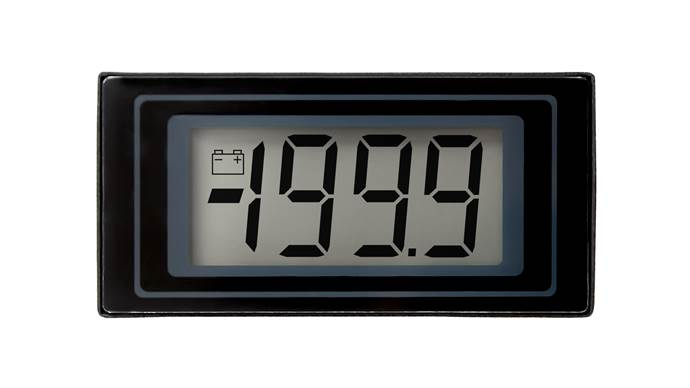

This compact panel meter features a 3½ digit LCD with 12.5mm (0.5”) digit height and a low-profile bezel for mounting. With a 200mV d.c. full scale reading, auto-zero and auto-polarity this meter plugs directly into a single-in-line (SIL) socket or can be panel mounted using the snap-in bezel and window supplied.
Specifications:
- Accuracy (overall error): 0.05% (typ.) ±1 count
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 3 samples/sec
- Supply voltage: (V+ to V-) 7.5 to 14 V
- Supply current: 150 μA
Applications:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Low Power Voltage Measurement
Specifications:
- Accuracy (overall error): 0.05% (typ.) ±1 count
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 3 samples/sec
- Supply voltage: (V+ to V-) 7.5 to 14 V
- Supply current: 150 μA
Applications:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Low Power Voltage Measurement
