4.3” Capacitive touch display with 4 channel temperature data logging application - EL-SGD 43-ATP
Save $85.69
$856.90
$771.21
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU EL-SGD 43-ATP

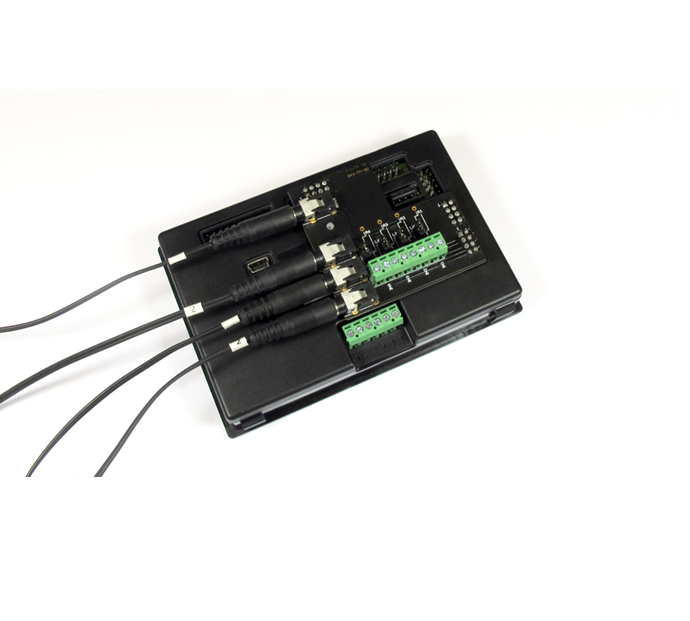

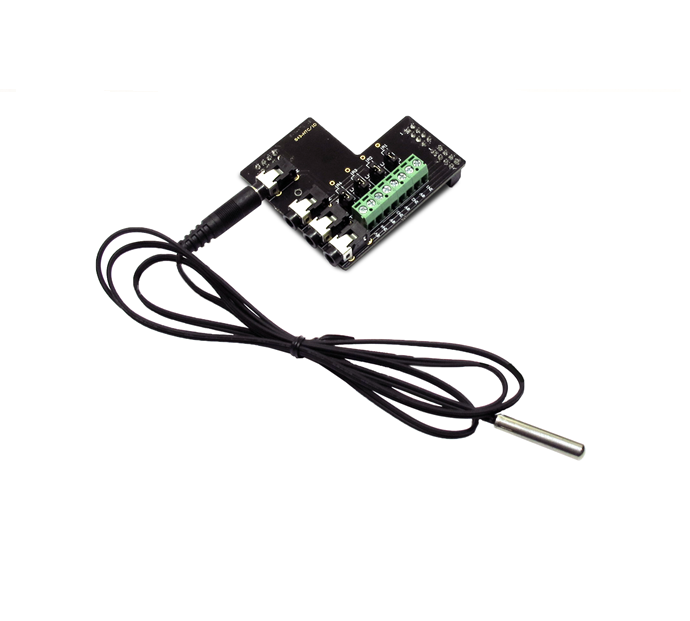

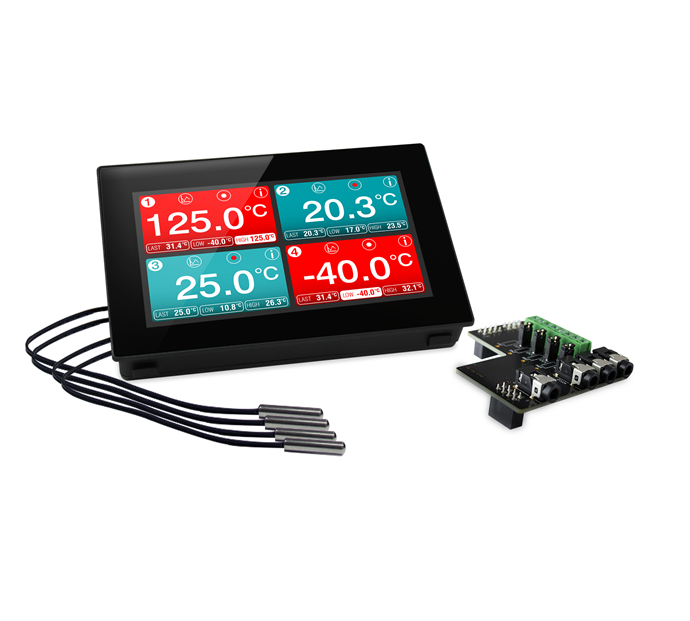

The EL-SGD 43-ATP is a panel-mountable, four-channel temperature data logger based on Lascar’s PanelPilotACE platform. The product includes a 4.3” panel mounted display module with capacitive touch screen, a four-channel thermistor temperature board and x4 compatible temperature probes.
The user interface comprises an advanced logging application which shows real-time readings for all four temperature channels, live trend graphs and access to a suite of real-time data analysis information. The logger can store up to 100,000 readings per channel at sample rates from 5 seconds to 12 hours.
Specifications:
- Supplied probe measurement range: -40°C to +125°C (-40°F to +257°F)
- Internal Resolution: 0.01°C (0.01°F)
- Temperature Accuracy: ±1.0°C (±1.8°F)
- Number of Readings (per channel): 100,000
- Logging Rate: 5 seconds to 12 hours
- Number of Channels: Up to 4
- Outside Dimensions: 119.3 x 79.8 x 31.3 mm (4.7 x 3.1 x 1.2 in)
- Communications Protocols: USB
