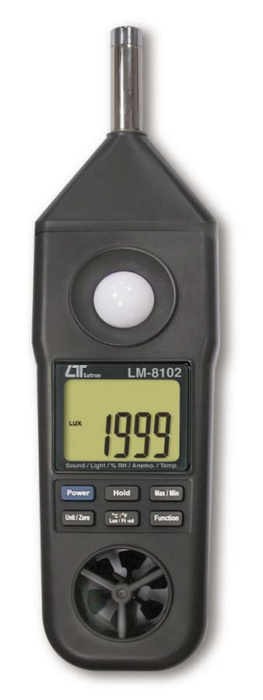

5 in 1 professional measuring instrument - LM8102

by Lutron
Save $41.25
$412.50
$371.25

1 in stock! Order now.
SKU LM8102
Features:

1. 5 in 1 professional measuring instruments.
2. Combines Anemometer, Hygrometer, Type K thermocouple, Light meter and Sound level meter.
3. Anemometer uses low-friction, ball bearing, mounted wheel design for accurate measurements in both high and low wind speeds.
4. Anemometer can convert between different air velocity measuring units with a press of a button.
5. Type K thermocouple uses standard type K ((NiCr-NiA) thermocouple input jack that is compatible for all type K probes.
6. Type K thermocouple can measure in Celsius or Fahrenheit.
7. Humidity meter uses high precision humidity sensor with fast response time.
8. Sound level meter is designed to simulate 'Human Ear listening'
9. Sound level meter uses the 'A' Frequency weighting and 'Fast' time weighting to meet IEC 61672 class 2 standards.
10. Sound level meter is compatible with external 94 dB sound calibrators.
11. Uses microprocessor technology to ensure rapid and accurate measurements for all integrated meters.
12. Concise and compact front panel design.
13. Comes with Memory Recall function for maximum and minimum values.
14. Hold Data function to freeze the current reading.
15. Light meter can measure in Lux or Feet-candle.
16. Multi-channel display for relative humidity and temperature and/or air velocity and temperature
17. Encased in durable, heavy duty casing.

General Specifications:

Display: Large LCD display (41.5 x 31.5 mm)
Operating Humidity: max. 80%RH
Operating Temperature: 0 to 50° C (32 to 122° F)
Data Output: RS232/USB PC serial interface
Power Supply: Anemometer - DC 11 mA.; Other functions - DC 7.5 mA
Dimension: 248 x 70 x 34 mm

Instrument specifications:

Hygrometer

Range: 10 to 95%
Resolution: 0.1 %RH
Accuracy: < 70 %RH : ± 4 %RH; ≧70 %RH : ± (4%rdg)

Type K Thermocouple

Range: -148 to 2372 ℉; -100 to 1300 ℃
Resolution: 0.1 ℉; 0.1 C

Anemometer Measurement range:

ft/min: 80 t0 5910
m/s: 0.4 to 30
Km/h: 1.4 to 108
MPH: 0.9 to 67
Knots: 0.8 to 58.3
Air temp: 32 to 122 ℉; 0 to 50 ℃
Anemometer Accuracy: 20 m/s : ± 3% F.S; > 20 m/s : ± 4% F.S

Light Meter Measurement Range

Lux: 0 to 2,200 Lux; 1,800 to 20,000 Lux
Ft-cd: 0 to 204.0 Fc; 170 to 1,860 Fc
Light meter Accuracy: ± 5% rdg ± 8 dgt

Sound level meter
Range: 35 to 130 dB
