Analogue Style Voltmeter with Single-Hole Mounting - EMA 1710

Save $10.12
$101.20
$91.08

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU EMA 1710

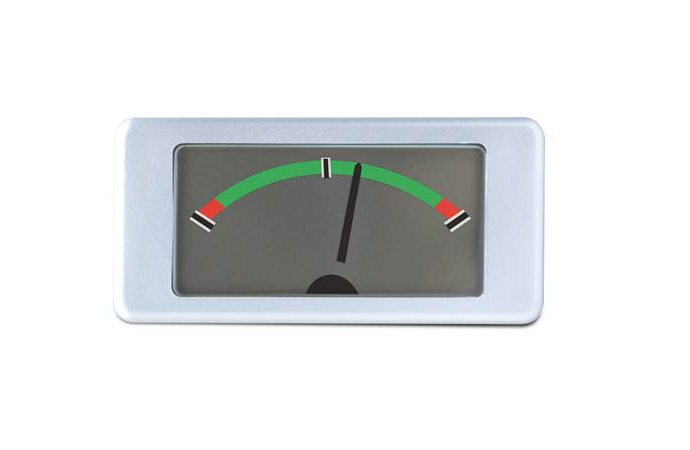

This panel meter features an analogue style LCD for measurement of voltage. Fitted with a threaded stud which allows mounting of the product through a 5.5mm (7/32”) drill hole, this unique enclosure provides quick and easy mounting. A rubber seal provides splashproof protection when fitted between the meter and mounting panel. Connection is via wires.

Specifications:

- Range: 1 V d.c.
- Accuracy (overall error): 1 segment
- Operating temperature: 0 to 50 °C (32 to 122 °F)
- Sample rate: 10 samples/sec
- Supply voltage: 5 to 12 V d.c.
- Supply current: 6 mA

Applications:

- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Automotive Projects
