Digital LCD thermometer with single-hole mounting - EMT 1900

Save $12.21
$122.10
$109.89

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU EMT 1900

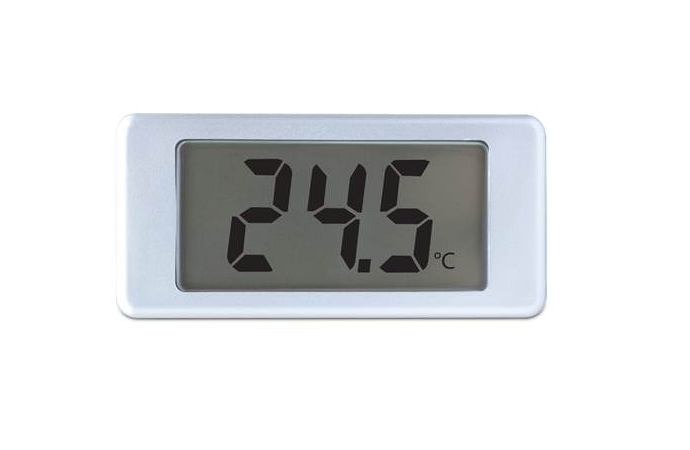

The EMT 1900 is a 3½ digit LCD thermometer with 12.5mm (0.5") digit height. Using internal or external NTC thermistors, it can measure -10 to +50°C (+14 to +122°F) and -20 to +220°C (-4 to +428°F). The meter can be panel mounted by drilling a 5.5mm (0.22") hole. Connection to the meter is via a set of wires.

Features:

• 3½ Digit LCD Meter
• Internal Sensor Fitted
• External Sensor Optional
• Wire Connections
• Round Hole Mounting

Specifications:

• Measurement ranges (°C range, internal): -10 to +50 °C
• Measurement ranges (°F range, internal): +14 to +122 °F
• Measurement ranges (°C range, external): -20 to +220 °C
• Measurement ranges (°F range, external): -4 to +428 °F
• Resolution (internal sensor): 0.5 (1)to °C (°F)
• Resolution (external sensor, -20 to +140°C): 1(2) °C (°F)
• Resolution (external sensor, +140 to +170°C): 2 (4) °C (°F)
• Resolution (external sensor, +170 to +220°C):5 (10)°C (°F)
• Accuracy (°C range, both sensors): 1 °C(±2 count)
• Accuracy (°F, both sensors): 2 °F (±4 count)
• Sample rate: 3 sample/sec
• Operating temperature range: -10 to +50°C
• Supply voltage: 4 to 28 V d.c.
• Supply current: 1 mA
