Dual 200mV LCD Voltmeter with LED Backlighting - DPM 702S

Save $20.02
$200.20
$180.18

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU DPM 702S

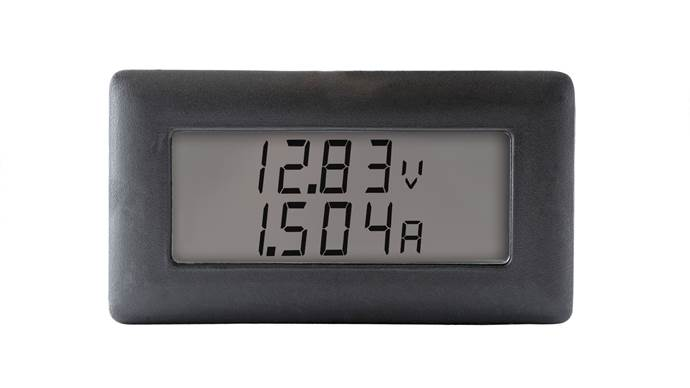

The DPM 702S is a dual channel 3½ digit LCD voltmeter with 6.4mm (0.25") digit height. It features two 200mV d.c. full scale reading inputs, auto-zero and auto-polarity. The meter plugs directly into a SIL socket and can be panel mounted using the bezel.

Features:

• 3½ Digit LCD Meter
• Dual Channel Voltmeter
• 200mV Full Scale Reading
• DIL Pin Connections
• Bezel Mounted Module

Specifications:

• Accuracy (overall error): 0.05 to 0.1 % (±1 count)
• Linearity: ±1count
• Sample rate: 3 samples/sec
• Full scale reading: -199.9 to 199.9 mV d.c.
• Resolution: 100 uV d.c.
• Operating temperature range: 0 to 40 °C
• Temperature stability: 100 ppm/°C
• Supply voltage: 3.5 to 7 V d.c.
• Supply current: 700 uA
• Input leakage current (Vin = 0V): 1 to 10 pA
