Elapsed Hour Meter with Single-Hole Mounting - EMC 1500

Save $12.10
$121.00
$108.90

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU EMC 1500

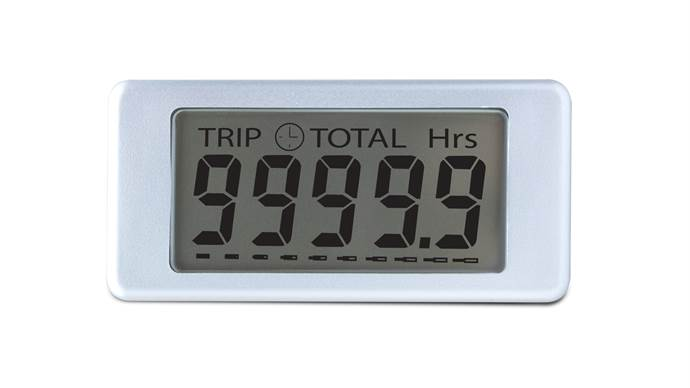

The EMC 1500 is a 5 digit LCD elapsed hour meter with 9mm (0.35") digit height. It features leading zero blanking, trip/total indication and an hourly pulse output. The meter can be panel mounted by drilling a 5.5mm (0.22") hole. Connection to the meter is via a set of wires.

Features:

• 5 Digit Elapsed Time Meter
• 9999.9 and 99999 Hr Ranges
• Reset and Trip/Total Inputs
• Wire Connections
• Round Hole Mounting

Specifications:

• Resolution (Range 9999.9): 0.1 Hour
• Resolution (Range 99999): 1 Hour
• Accuracy: ±2 to ±6 sec/24hrs
• Operating temperature range: 0 to 50 °C
• Supply voltage (V+): 5 to 27 V d.c.
• Supply current: 1.5 mA
• Input low voltage (Vil): 0 to 0.5 V d.c.
