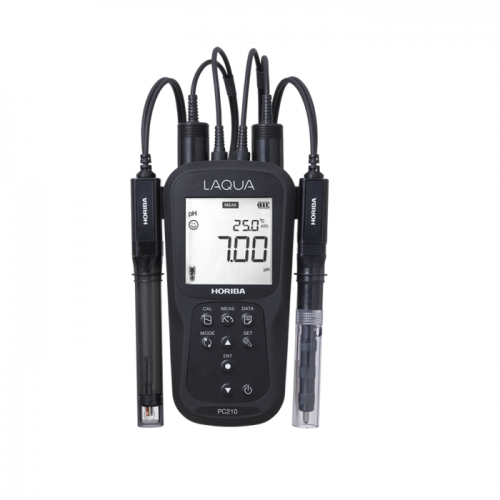

Laqua PC210-K Handheld Water Quality Meter Kit

Save $72.60
$1,452.00
$1,379.40

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU PC210

Handheld water quality meter that measures pH, conductivity, resistivity, salinity and TDS . Waterproof, dust proof, eco-friendly, shock and scratch resistant and built for hands-free testing. With phone jack output for connecting the meter to computer for software upgrades.

Features:

- Automatic pH calibration - up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
- 0.01 pH resolution
- Offset and average slope display
- Can measure OPR using a separate probe (optional)
- ORP calibration option
- Automatic / manual temperature compensation and temperature calibration function
- Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
- Adjustable reference temperature and temperature coefficient
- Adjustable cell constant and selectable measurement unit
- Conductivity and total dissolved solids (TDS) conversion
- Four TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
- Two salinity calibration curves: NaCl, Seawater
- Auto log data; built-in memory can store up to 500 data
- Auto shut-off (programmable: up to 30 minutes)
- Auto stable, auto hold, and real time measurement modes
- Calibration alarm (programmable: up to 90 days)
- Built-in electrode holder allows 2 electrodes to be attached
- Monochrome LCD with white LED backlight: 50 x 50 mm
- Phone jack output for connecting the meter to computer for software upgrade only
- Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
- Powered by 2 x AA batteries
- Packaged with electrodes and calibration solutions in carrying case

Specifications:

pH:

- Range: -2.00 to 16.00 pH
- Resolution: 0.01 pH
- Accuracy: +/- 0.01 pH
- Calibration Points: Up to 5 (USA & NIST) / Up to 6 (DIN)
- Buffer Options: USA, NIST, Custom

ORP:

- Range: +/- 2000 mV
- Resolution: 0.1 mV (less than +/- 1000 mV), 1 mV (greater than or equal to +/-1000 mV)
- Accuracy: +/- 0.3 mV (less than +/- 1000 mV), 0.3% of reading (greater than or equal +/- 1000 mV)
- Calibration Option: Yes

Conductivity:

- Range: ...uS/cm to 200.0 mS/cm (k=1.0)
- Resolution: 0.05% full scale
- Accuracy: +/- 0.6% full scale; +/- 1.5% full scale > 18.0 mS/cm
- Reference Temperature: 15 to 30 C (adjustable)
- Temperature Coefficient: 0.00 to 10.00% (adjustable)
- Cell Constant: 0.1, 1.0, 10.0 (adjustable)
- Calibration Points: Up to 4 (Auto) / Up to 5 (Manual)
- Measurement Unit: S/cm, S/m (selectable / auto-ranging)

TDS:

- Range: ...ppm to 100 ppt (TDS factor=0.5)
- Resolution: 0.01 ppm (mg/L) / 0.1 ppt (g/L)
- Accuracy: +/- 0.1% full scale
- TDS Curves: Linear (0.40 to 1.00), EN27888, 442, NaCl

Resistivity:

- Range: 0.000 to 20.0 ohm centimeter
- Resolution: 0.05% full scale
- Accuracy: +/- 0.6% full scale; +/- 1.5% full scale > 18.0 ohm centimeter

Salinity:

- Range: 0.0 to 100.0 ppt / 0.00 to 10.00 %
- Resolution: 0.1 ppt / 0.01%
- Accuracy: +/- 0.2% full scale
- Salinity Curves: NaCl / Seawater
- Calibration Option: Yes

Temperature:

- Range: -30.0 to 130.0 C/-22.0 to 266.0 F
- Resolution: 0.1 C/F
- Accuracy: +/- 0.5 C / +/- 0.9 F
- Calibration Option: Yes

Others:

- Memory Data: 500
- Auto Log Data: Yes
- Measurement Modes: Auto Stable, Auto Hold, Real Time
- Offset / Average Slope Display: Yes
- Calibration Alarm: Yes (Programmable: up to 90 days)
- Auto Shut-Off: Yes (Programmable: up to 30 minutes)
- Electrode Status: Yes (On screen display)
- Diagnostic Messages: Yes
- Software Upgrade: Yes via PC (USB) cable PN 3200779639
- Meter Inputs: 2 x BNC (for pH and conductivity electrodes), 2 x phono (for temperature sensors)
- Meter Output: phono (for software upgrade only)
- Display: Custom LCD with backlight
- Housing: IP67, shock & scratch resistant, non-slip
- Power Requirement: 2 x AA batteries
- Battery Life: > 500 hours
- Meter Dimensions: 160 (L) x 80 (W) x 40.60 (H) mm
- Meter Weight: Approx. 260g (with batteries) / 216g (without batteries)

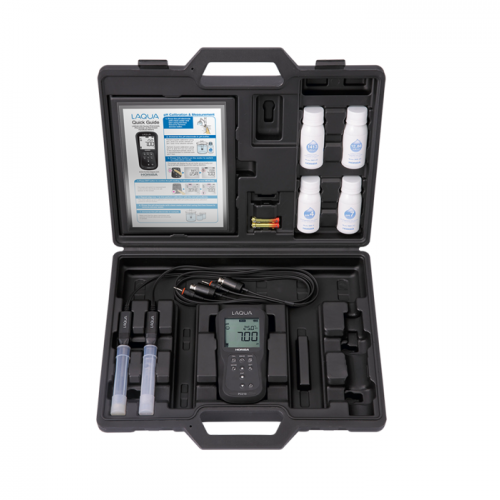

Includes:

- LAQUA PC210 dual channel pH/ORP/Cond/TDS/Res/Sal/Temp meter
- 2 x AA batteries
- Manual and quick guide
- 9652-10D plastic-body, gel-filled pH electrode with integrated temperature sensor
- 9383-10D plastic-body, Ti/Pt black, conductivity probe (k=1.0) with integrated temperature sensor
- pH 4.01 and 7.00 buffers, 1413 uS/cm and 12.88 mS/cm conductivity solutions (60ml each)
- Electrode adapter
- Carrying case
