Large AC LCD Voltmeter with LED Backlighting - DPM 970

$237.60

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU DPM 970

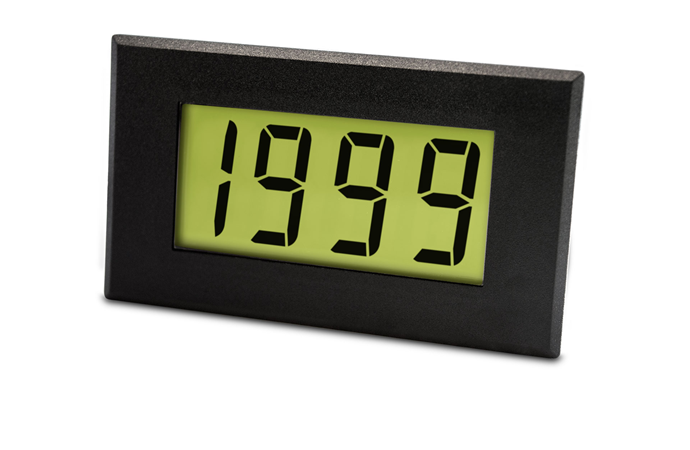

The DPM 970 is a 3½ digit LCD voltmeter with 19 mm (0.75") digit height and LED back-lighting. It features 500V a.c. RMS full scale reading, auto-zero and auto-polarity. Connection is via screw terminals. The meter can be panel mounted using the bezel

Features:

• 3½ Digit LCD Meter
• 500V a.c. RMS Full Scale
• Digital Hold Function
• Screw Terminal Connections
• Bezel Mounted Module

Specifications:

• Accuracy (overall error): 0.05 to 0.1 % (±1 count)
• Linearity: ±1count
• Sample rate: 3 samples/sec
• Operating temperature range: 0 to 50 °C
• Temperature stability: 200 ppm/°C
• Supply voltage (V+ to V-): 4.75 to 5.25 V d.c.
• Supply Current: 50 to 90 mA
• Input leakage current (Vin = 0V): 1 to 10 pA
• Warm-up time: 10 minutes
• Full scale reading: 0 to 1999 Vrms
• Resolution: 1 Vrms
• Frequency range (input voltage): 15 to 15K Hz
• Input impedance (2kV range): 1 Mohm
• DC supply voltage: 7.5 to 14V d.c.
• Supply current (backlighting off): 1.5 mA d.c.
• Supply current (backlighting on) @ 5V d.c.: 50 mA d.c.
