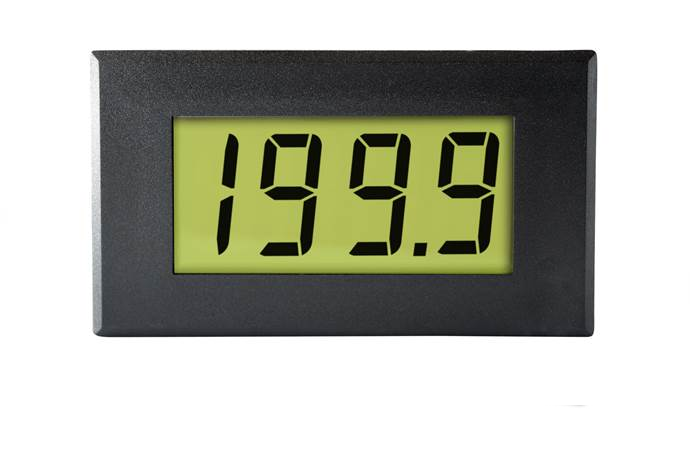

Large LCD Voltmeter with LED Backlighting - DPM 950
Save $15.33
$153.34
$138.01
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU DPM 950
The DPM 950 is a 3½ digit LCD voltmeter with 19mm (0.75") digit height and LED back-lighting. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into a 16-way IDC socket or can be panel mounted using the bezel.
Features:
• 3½ Digit Backlit LCD Meter
• 200mV Full Scale Reading
• Auto-zero, Auto-polarity
• DIL Pin Connections
• Bezel Mounted Module
Specifications:
• Accuracy (overall error): 0.05 to 0.1 % (±1 count)
• Linearity: ±1count
• Sample rate: 3 samples/sec
• Temperature stability: 100 ppm/°C
• Supply voltage: 7.5 to 14 V d.c.
• Supply Current: 150 uA
• Backlight supply current @ 5V d.c.: 50 uA
• Input leakage current (Vin = 0V): 1 to 10 pA
