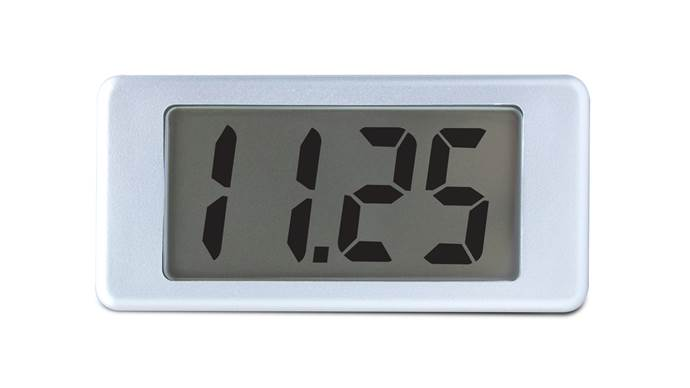

LCD Voltmeter with Single-Hole Mounting - EMV 1125
Save $10.92
$109.23
$98.31
Order now, stock will leave our store in the next 2-4 weeks
Email The Electric Burst Team For More Availability Information
SKU EMV 1125
The EMV 1125 is a 3½ digit LCD voltmeter with 12.5mm (0.5") digit height. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter can be panel mounted by drilling a 5.5mm (0.22") hole. Connection to the meter is via a set of wires. Includes T/BLK-4 screw terminal board with on-board scaling.
Features:
• 3½ Digit LCD Meter
• 200mV Full Scale Reading
• Wire Connections
• Round Hole Mounting
Specifications:
• Accuracy (overall error): 0.05 to 0.1 %(±2 count)
• Linearity: ±1 count
• Displayed reading: -1999 to 1999
• Resolution: 0.1 mV d.c.
• Sample rate: 3 samples/sec
• Operating temperature range: 0 to 50 °C
• Temperature stability: 100 ppm/°C
• Supply Voltage: 7.5 to 15 V d.c.
• Supply Current: 150 mA
