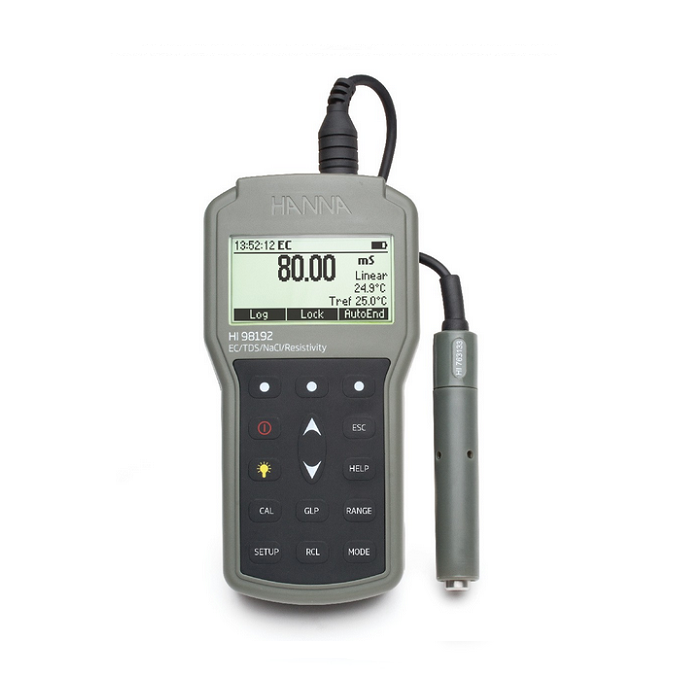

Waterproof Portable EC/TDS/RES/SAL Meter - HI98192

Save $52.52
$1,050.50
$997.98

Order now, stock will leave our store in the next 2-4 weeks

Email The Electric Burst Team For More Availability Information
SKU HI98192
Features:

• USP <645> capable for checking the quality of water used in pharmaceutical manufacturing
• Seawater salinity can be displayed as % NaCl, natural seawater scale (ppt) or practical salinity scale (PSU)
• Auto-ranging and fixed range options
• Perform up to a five point calibration for enhanced accuracy
• GLP features include GLP data provides calibration data including date, time, standards used, temperature compensation used, reference temperature, and TDS conversion factor (TDS)
• Calibration timeout to alert the user at a defined interval when the calibration has expired
• Auto Hold
• Multiple language selection
• No temperature compensation, linear temperature compensation and non linear temperature compensation options – ISO/DIN 7888
• Configurable linear temperature compensation coefficient range from 0.00 to 10.00%/°C
• Log on Demand: Store measurement data at the press of a button
• Interval lot logging: Log measurements at a selectable interval
• PC connectivity via opto-isolated USB with optional HI92000 software
• Approximately 100 hours of continuous use (without backlight)
• Menu driven for ease of use with virtual-key extended functionality
• Contextual help at the press of a button
• Backlit, Graphic LCD
• PC connectivity via a sealed opto-isolated micro USB and HI92000 software
• Compact, rugged, waterproof (IP67) design

Specifications:

• EC Range: 0.000 to 9.999 μS/cm*; 10.00 to 99.99 μS/cm; 100.0 to 999.9 μS/cm; 1.000 to 9.999 mS/cm; 10.00 to 99.99 mS/cm; 100.0 to 1000.0 mS/cm (actual conductivity; temperature compensated to 400 mS/cm)
• EC Resolution: 0.001 μS/cm; 0.01 μS/cm; 0.1 μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm
• EC Accuracy: ±1% of reading (±0.01 μS/cm or 1 digit, whichever is greater)
• EC Calibration: Automatic up to five points with seven memorized standards (0.00 μS/cm, 84.0 μS/cm, 1.413 mS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm)

• TDS Range: 0.00 to 99.99 ppm; 100.0 to 999.9 ppm; 1.000 to 9.999 ppt (g/L); 10.00 to 99.99 ppt (g/L); 100.0 to 400.0 ppt (g/L)
• TDS Resolution: 0.01 ppm; 0.1 ppm; 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L)
• TDS Accuracy: ±1% of reading (±0.05 mg/L (ppm) or 1 digit, whichever is greater)

• Resistivity Range: 1.0 to 99.9 Ω•cm; 100 to 999 Ω•cm; 1.00 to 9.99 KΩ•cm; 10.0 to 99.9 KΩ•cm; 100 to 999 KΩ•cm; 1.00 to 9.99 MΩ•cm; 10.0 to 100.0 MΩ•cm
• Resistivity Resolution: 0.1 Ω•cm; 1 Ω•cm; 0.01 KΩ•cm; 0.1 KΩ•cm; 1 KΩ•cm; 0.01 MΩ•cm; 0.1 MΩ•cm*
• Resistivity Accuracy: ±1% of reading (±10 Ω or 1 digit, whichever is greater)

• Salinity Range % NaCl: 0.0 to 400.0%; practical salinity: 0.00 to 42.00 (PSU); natural seawater scale - UNESCO 1966: 0.00 to 80.00 (ppt)
• Salinity Resolution: 0.1%; 0.01
• Salinity Accuracy: ±1% of reading
• Salinity Calibration: max. one point only in % range (with HI7037 standard); use conductivity calibration for all other ranges

• Temperature Range: -20.0 to 120.0°C (-4.0 to 248.0°F)
• Temperature Resolution: 0.1°C (0.1°F)
• Temperature Accuracy: ±0.2°C; ±0.4°F (excluding probe error)
• Temperature Calibration: one or two points
• Temperature Compensation: noTC, Linear (-20 to 120 °C; -4 to 248°F), Non Linear - ISO/DIN 7888 (-0 to 36 °C; 32 to 96.8°F)
• Reference Temperature: 15°C, 20°C and 25°C
• Temperature Coefficient: 0.00 to 10.00 %/°C

• Measurement Modes: Autorange, autoend, lock and fixed range
• TDS Factor: 0.40 to 1.00
• Electrode/Probe: HI763133 platinum, four ring conductivity/TDS probe with internal temperature sensor and 4 m (13.2’) cable (included)
• Log-on-demand: 400 samples; lot logging: 5, 10, 30 sec, 1, 2, 5, 10, 15, 30, 60, 120, 180 min (max 1000 samples)
• Memorized Profiles: Up to 10
• PC Connectivity: Opto-isolated USB with optional HI 92000 software and micro USB cable
• Battery Type/Life: 1.5V AA batteries (4) / approximately 100 hours of continuous use (without backlight), 25 hours with backlight
• Auto-off: User selectable: 5, 10, 30, 60 min or can be disabled
• Environment: 0 to 50°C (32 to 122°F); RH 100% (IP67)
• Dimensions: 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
