Shore D Durometer 0 to 100Hd With Lcd Display - SHORED-01

Save $9.90
$198.00
$188.10

15 in stock! Order now.
SKU 560-10D
The hardness of Rubber and Plastics is their comprehensive performance reaction. The Digital Shore D Durometer is a kind of sophisticated measurement tool for measuring the hardness of Rubber and Plastics.

This Shore D Hardness Meter is ideal for measuring hardness of Hard Hardness Rubber and Plastics such as Thermo Plastics, Flooring and Bowling balls. It has wide measuring range from 0 ~ 100 HD, Data Hold function and zero button for self calibration.

The Digital Shore D Durometer carry out the provision of GB/T531-99,GB2411-80, HGT 2489-93 and JJG304-2003

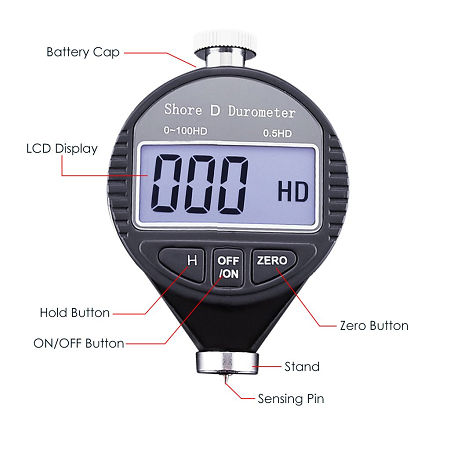

Features:

- Suitable for Low, Medium and Hard Hardness Rubber and Plastics such as Thermo Plastics, Flooring and Bowling balls
- Wide measuring range: 0 ~ 100 HD
- Data Hold function
- Zero button for self calibration
- Battery included
- With CE Marking, conforms with European health & safety requirement
- The Digital Shore D Durometer carry out the provision of GB/T531-99,GB2411-80, HGT 2489-93 and JJG304-2003.

Specifications:

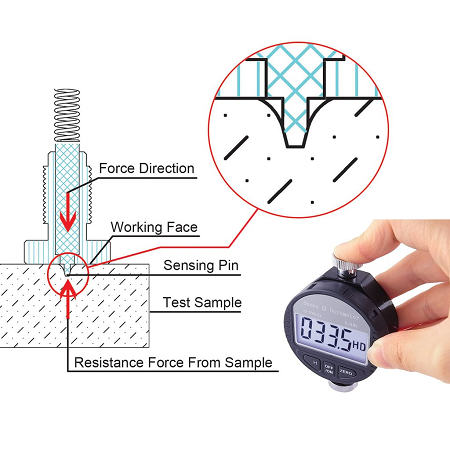

- Sharp cone point (SR 0.1mm), 30° Included Angle
- Thickness of measured sample : > 6mm (no more than 3 layers)
- Measured Area cannot be less then pressure edge 15mm
- LCD Display : 4 digits, 40 x 18 mm (1.57 x 0.71 inch)
- Measuring Range / Graduation : 0~100 HD
- Indentor Running : 0-2.5mm
- Indentor press on telos : A, C type 0.55-8.06N, D type 0-44.5N
- Resolution : 0.5 HD
- Power Supply : 1 x SR44 button cell battery (included)

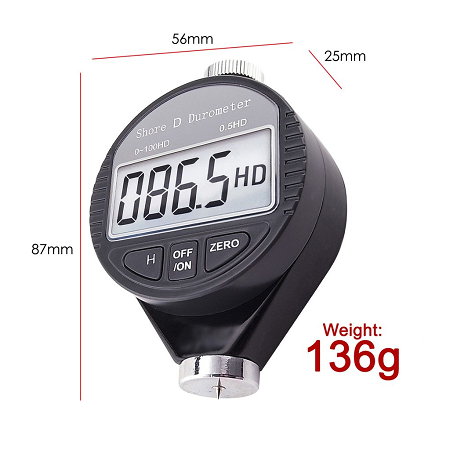

- Item Size : 87 x 56 x 25mm (LxWxD) (3.43 x 2.2 x 0.98inch)
- Item Weight : 136g (4.79oz)
Set includes:
- 1 x Shore D Hardness Meter
- 1 x SR44 Button Cell Battery (installed)
- 1 x Instruction Manual
- Standard Factory Package
